Azure IoT Hub: Implementing IoT Hub

Implementing Azure IoT Hub opens up a world of possibilities for building scalable and secure IoT solutions. By following this step-by-step guide, you'll be well on your way to harnessing the power of IoT with Azure.

Introduction

In today's rapidly evolving technological landscape, the Internet of Things (IoT) has become a pivotal force driving innovation across industries. Among the multitude of IoT platforms available, Microsoft Azure IoT Hub stands out as a robust and scalable solution for connecting, monitoring, and managing billions of IoT assets.

Implementing Azure IoT Hub might seem daunting at first, but fear not! In this comprehensive guide, we'll walk you through the process step-by-step, ensuring a smooth and successful implementation.

Step 1. Set up your Azure account

Before diving into Azure IoT Hub, you'll need an active Azure account. If you don't have one already, you can sign up for a free Azure account here. Once you've created your account, log in to the Azure portal.

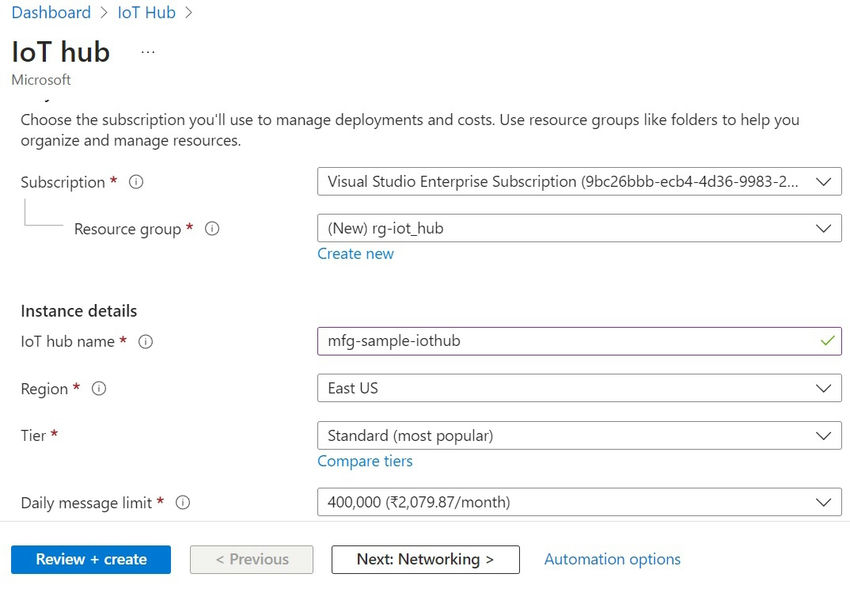

Step 2. Create an IoT Hub

1. In the Azure portal, click on "Create a resource" and search for "IoT Hub".
2. Click on "Create" and fill in the required information such as Subscription, Resource Group, Region, IoT Hub Name, and Pricing and Scale Tier.

3. Once all the details are filled in, click on "Review + Create" and then "Create" to provision your IoT Hub.

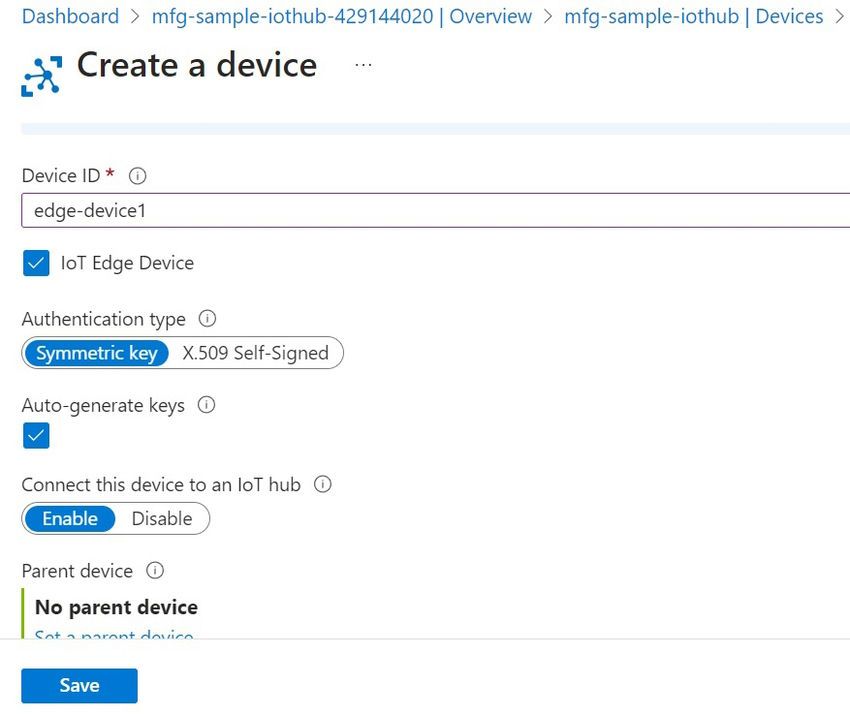

Step 3. Register your Device

1. After the IoT Hub is created, navigate to it in the Azure portal.
2. Under "Explorers", click on "IoT devices" and then "New".
3. Fill in the Device ID and any optional fields, then click on "Save" to register your device.

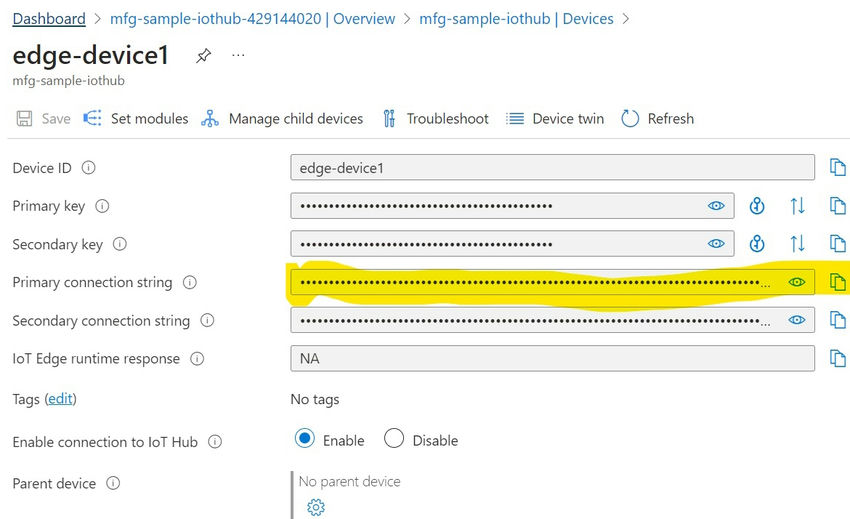

Step 4. Generate device connection string

1. Once your device is registered, click on its name to open its details.
2. Under the "Settings" tab, click on "Shared access policies".
3. Select a policy (e.g., "iothubowner") and copy the "Connection string—primary key" value. This will be used by your device to authenticate with Azure IoT Hub.


Step 5. Develop and Deploy your device code

Depending on your device's platform and programming language, you'll need to develop code to send data to Azure IoT Hub. Below is a basic example using Python.

import random
import time
from azure.iot.device import IoTHubDeviceClient, Message

CONNECTION_STRING = "<your-device-connection-string>"

def send_data_to_iot_hub():
    try:
        client = IoTHubDeviceClient.create_from_connection_string(CONNECTION_STRING)
        print("Connected to Azure IoT Hub")

        while True:
            temperature = random.randint(20, 30)
            humidity = random.randint(40, 60)
            msg = Message(f'{{"temperature": {temperature}, "humidity": {humidity}}}')
            client.send_message(msg)
            print(f"Message sent: {msg}")
            time.sleep(5)

    except Exception as e:
        print(f"Error: {e}")

if __name__ == "__main__":
    send_data_to_iot_hub()

Replace <your-device-connection-string> with the actual device connection string obtained in Step 4.

Step 6. Monitor and Analyze data

Once your device is sending data to Azure IoT Hub, you can monitor and analyze it using various Azure services like Azure Stream Analytics, Azure Functions, or Azure IoT Central.

Conclusion

Implementing Azure IoT Hub opens up a world of possibilities for building scalable and secure IoT solutions. By following this step-by-step guide, you'll be well on your way to harnessing the power of IoT with Azure.

For more detailed information and advanced features, refer to the official Azure IoT Hub documentation.
