ALL GridView Events For Beginners

What is Gridview ?

Displays the values of a data source in a table where each column represents a field and each row represents a record. The GridView control enables you to select, sort, and edit these items.

Events of Gridview

  1. RowCommand
  2. RowEditing
  3. RowDeleting
  4. RowUpdating
  5. PageIndexChanging



Maingrid.aspx


<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Maingrid.aspx.cs" Inherits="Maingrid" %>

<%@ Register Assembly="AjaxControlToolkit" Namespace="AjaxControlToolkit" TagPrefix="cc1" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">
<
head id="Head1" runat="server">
    <title></title>

</
head>
<
body>
    <form id="form1" runat="server">

    <div style="padding-left: 500px; padding-right: 40px; width: 100%">

        <asp:GridView ID="GridView1" ShowFooter="True" runat="server" AutoGenerateColumns="False"

            DataKeyNames="Fid" CellPadding="4" GridLines="Horizontal" PageSize="10" BackColor="White"

            BorderColor="#336666" BorderStyle="Double" BorderWidth="3px" AllowPaging="True"

            OnRowCommand="GridView1_RowCommand" OnRowDeleting="GridView1_RowDeleting"
OnRowEditing="GridView1_RowEditing"

            OnRowUpdating="GridView1_RowUpdating" OnPageIndexChanging="GridView1_PageIndexChanging"

            Style="margin-right: 0px">

            <Columns>

                <asp:TemplateField HeaderText="SNo.">

                    <ItemTemplate>

                        <%#Container.DataItemIndex + 1 %>

                    </ItemTemplate>

                </asp:TemplateField>

                <asp:TemplateField HeaderText="Product Name" SortExpression="Fname">

                    <EditItemTemplate>

                        <asp:TextBox ID="TextBox2" runat="server" Text='<%# Bind("Fname") %>'></asp:TextBox>

                    </EditItemTemplate>

                    <ItemTemplate>

                        <asp:Label ID="Label1" runat="server" Text='<%# Bind("Fname") %>'></asp:Label>

                    </ItemTemplate>

                    <FooterTemplate>

                        <asp:TextBox ID="txtFooterProductname" runat="server"></asp:TextBox>

                    </FooterTemplate>

                </asp:TemplateField>

                <asp:TemplateField HeaderText="Price" SortExpression="Fprice">

                    <EditItemTemplate>

                        <asp:TextBox ID="TextBox3" runat="server" Text='<%# Bind("Fprice") %>'></asp:TextBox>

                        <cc1:FilteredTextBoxExtender ID="TextBox3_FilteredTextBoxExtender" FilterMode="ValidChars"

                            runat="server" Enabled="True" FilterType="Numbers" TargetControlID="TextBox3">

                        </cc1:FilteredTextBoxExtender>

                    </EditItemTemplate>

                    <ItemTemplate>

                        <asp:Label ID="Label3" runat="server" Text='<%# Bind("Fprice") %>'></asp:Label>

                    </ItemTemplate>

                    <FooterTemplate>

                        <asp:TextBox ID="TxtFooterprice" runat="server" Height="21px"></asp:TextBox>

                        <cc1:FilteredTextBoxExtender ID="TxtFooterprice_FilteredTextBoxExtender" runat="server"

                            Enabled="True" FilterType="Numbers" FilterMode="ValidChars"
TargetControlID="TxtFooterprice">

                        </cc1:FilteredTextBoxExtender>

                    </FooterTemplate>

                </asp:TemplateField>

                <asp:TemplateField HeaderText="Recstatus" SortExpression="Recstatus">

                    <EditItemTemplate>

                        <asp:DropDownList ID="DrpStatusEdit" runat="server">

                            <asp:ListItem Value="0" Text="Select"></asp:ListItem>

                            <asp:ListItem Value="1" Text="A"></asp:ListItem>

                            <asp:ListItem Value="2" Text="D"></asp:ListItem>

                        </asp:DropDownList>

                    </EditItemTemplate>

                    <ItemTemplate>

                        <asp:Label ID="Label4" runat="server" Text='<%# Bind("Recstatus") %>'></asp:Label>

                    </ItemTemplate>

                    <FooterTemplate>

                        <asp:DropDownList ID="DrpStatus" runat="server">

                            <asp:ListItem Value="0" Text="Select"></asp:ListItem>

                            <asp:ListItem Value="1" Text="A"></asp:ListItem>

                            <asp:ListItem Value="2" Text="D"></asp:ListItem>

                        </asp:DropDownList>

                    </FooterTemplate>
                </asp:TemplateField>
                <asp:TemplateField HeaderText="Save" SortExpression="Save">

                    <ItemTemplate>

                        <asp:Button ID="btnedit" CommandName="Edit" runat="server" Text="Edit" />

                        <asp:Button ID="btndelete" CommandName="Delete" runat="server" Text="Delete" />

                    </ItemTemplate>

                    <EditItemTemplate>

                        <asp:Button ID="btnupdate" CommandName="Update" runat="server" Text="Update" />

                        <asp:Button ID="btnCancel" CommandName="Cancel" runat="server" Text="Cancel" />

                    </EditItemTemplate>

                    <FooterTemplate>

                        <asp:Button ID="Btnsave" CommandName="ADD" runat="server" Text="ADD" />

                    </FooterTemplate>

                </asp:TemplateField>

            </Columns>

            <FooterStyle BackColor="White" ForeColor="#333333" />

            <HeaderStyle BackColor="#336666" Font-Bold="True" ForeColor="White" />

            <PagerStyle BackColor="#336666" ForeColor="White" HorizontalAlign="Center" />

            <RowStyle BackColor="White" ForeColor="#333333" />

            <SelectedRowStyle BackColor="#339966" Font-Bold="True" ForeColor="White" />

            <SortedAscendingCellStyle BackColor="#F7F7F7" />

            <SortedAscendingHeaderStyle BackColor="#487575" />

            <SortedDescendingCellStyle BackColor="#E5E5E5" />

            <SortedDescendingHeaderStyle BackColor="#275353" />

        </asp:GridView>

    </div>

    <asp:ScriptManager ID="ScriptManager1" runat="server">

    </asp:ScriptManager>

    </form>

</
body>
</
html>

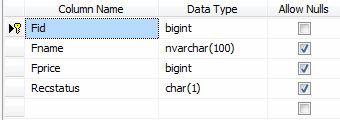

Create Table Here I Provide Script

CREATE TABLE [dbo].[Food](

     [Fid] [bigint] primary key IDENTITY(1,1) NOT NULL,
     [Fname] [nvarchar](100) NULL,
     [Fprice] [bigint] NULL,
     [Recstatus] [char](1) NULL,
)


INSERT INTO Food(Fname,Fprice,Recstatus)VALUES('Dal',2000,'A')

INSERT INTO Food(Fname,Fprice, Recstatus)VALUES('Rice',52000,'A')
// StoredProcedure [dbo].[InsertFood]

// For Inserting and Updating Records

USE
[AllSampleCode]
GO

SET
ANSI_NULLS ON
GO

SET
QUOTED_IDENTIFIER ON
GO

ALTER
proc [dbo].[InsertFood]

@Fid bigint=null,

@Fprice   bigint    =null,
@Fname    nvarchar(100) =null,

@Recstatus    char(1)   =null

as

DECLARE
@ReturnValue int
if
(@Fid =0)
begin

insert
INTO Food
(

Fprice ,

Fname ,

Recstatus

)

VALUES

(

@Fprice   ,

@Fname    ,

@Recstatus

SELECT @ReturnValue = SCOPE_IDENTITY()
END

ELSE

begin
update
Food

SET

Fprice =@Fprice,
Fname=@Fname ,

Recstatus =@Recstatus

where
Fid =@Fid
end

IF (@@ERROR != 0)

  BEGIN
    RETURN -1

  END

  ELSE

  BEGIN

    RETURN @ReturnValue

  END

To  Bind GridView Using This Method

public void bindgrid()

{
    SqlCommand cmd = new SqlCommand("select * from food ", con);
    cmd.CommandType = CommandType.Text;
    SqlDataAdapter da = new SqlDataAdapter();

    da.SelectCommand = cmd;

    DataTable dt = new DataTable();

    da.Fill(dt);

    if (dt.Rows.Count > 0)

    {

        GridView1.DataSource = dt;

        GridView1.DataBind();

    }

    else

    {

         DataRow dr = dt.NewRow();

         dt.Rows.Add(dr);

         GridView1.DataSource = dt;

         GridView1.DataBind();

    }

}

To Find Control In Gridview Footer

TextBox txtFooterProductname = (TextBox)GridView1.FooterRow.FindControl("txtFooterProductname");

TextBox TxtFooterprice = (TextBox)GridView1.FooterRow.FindControl("TxtFooterprice");DropDownList DrpStatus = (DropDownList)GridView1.FooterRow.FindControl("DrpStatus");

On RowCommand

protected void GridView1_RowCommand(object sender, GridViewCommandEventArgs e)

{
        // finding controls of footer row

        if (e.CommandName == "ADD") // checking command Name is same as given

        {

            TextBox txtFooterProductname = (TextBox)GridView1.FooterRow.FindControl("txtFooterProductname");
            TextBox TxtFooterprice = (TextBox)GridView1.FooterRow.FindControl("TxtFooterprice");
            DropDownList DrpStatus = (DropDownList)GridView1.FooterRow.FindControl("DrpStatus");

            if (DrpStatus.SelectedIndex == 0)
            {

                ScriptManager.RegisterStartupScript(this, this.GetType(), "Alert", "alert('Select Status ')", true);

            }

            else

            {

                    con.Open();

                    SqlCommand cmd = new SqlCommand("InsertFood", con);

                    cmd.CommandType = CommandType.StoredProcedure;

                    cmd.Parameters.AddWithValue("@Fid", 0);

                    cmd.Parameters.AddWithValue("@Fprice", TxtFooterprice.Text);

                    cmd.Parameters.AddWithValue("@Fname", txtFooterProductname.Text);

                    cmd.Parameters.AddWithValue("@Recstatus", DrpStatus.SelectedItem.Text);

                    cmd.ExecuteNonQuery();

                    con.Close();

                    bindgrid();

            }

      }
}

On RowEditing

protected void GridView1_RowEditing(object sender, GridViewEditEventArgs e)

{
       GridView1.EditIndex = e.NewEditIndex;

       bindgrid();

}

On RowDeleting

protected void GridView1_RowDeleting(object sender, GridViewDeleteEventArgs e)

{
      Label txt = (Label)GridView1.Rows[e.RowIndex].FindControl("Label4");

      if (txt.Text == "A")

      {

            int userid = Convert.ToInt32(GridView1.DataKeys[e.RowIndex].Values["Fid"].ToString());

            SqlCommand cmd = new SqlCommand("Delete From Food where Fid= " + userid, con);

            cmd.CommandType = CommandType.Text;

            con.Open();

            cmd.ExecuteNonQuery();

            con.Close();

            bindgrid();

      }

}

On RowUpdating

protected void GridView1_RowUpdating(object sender, GridViewUpdateEventArgs e)

{
        Button btn = (Button)GridView1.Rows[e.RowIndex].FindControl("btnupdate");

        if (btn.CommandName == "Update")

        {

            int userid = Convert.ToInt32(GridView1.DataKeys[e.RowIndex].Value.ToString());

            TextBox TextBox2 = (TextBox)GridView1.Rows[e.RowIndex].FindControl("TextBox2");

            TextBox TextBox3 = (TextBox)GridView1.Rows[e.RowIndex].FindControl("TextBox3");

            TextBox TextBox4 = (TextBox)GridView1.Rows[e.RowIndex].FindControl("TextBox4");

            DropDownList DrpStatusEdit = (DropDownList)GridView1.Rows[e.RowIndex].FindControl("DrpStatusEdit");

            if (DrpStatusEdit.SelectedValue == "1")

            {

                con.Open();

                SqlCommand cmd = new SqlCommand("InsertFood", con);

                cmd.CommandType = CommandType.StoredProcedure;

                cmd.Parameters.AddWithValue("@Fid", userid);

                cmd.Parameters.AddWithValue("@Fprice", TextBox3.Text);

                cmd.Parameters.AddWithValue("@Fname", TextBox2.Text);

                cmd.Parameters.AddWithValue("@Recstatus", DrpStatusEdit.SelectedItem.Text);

                cmd.ExecuteNonQuery();

                con.Close();

            }

            GridView1.EditIndex = -1;

            bindgrid();
        }

}

On PageIndexChanging

protected void GridView1_PageIndexChanging(object sender, GridViewPageEventArgs e)

{
    GridView1.PageIndex = e.NewPageIndex;

    bindgrid();

}
