Usage Of Union Function In Power Automate

Introduction

In Power Platform, at times we must combine couple of Arrays or objects. In these scenarios, Union function in Power Automate can be used. As an example, Names String Array and Vehicles String Array were used to explain this behavior.

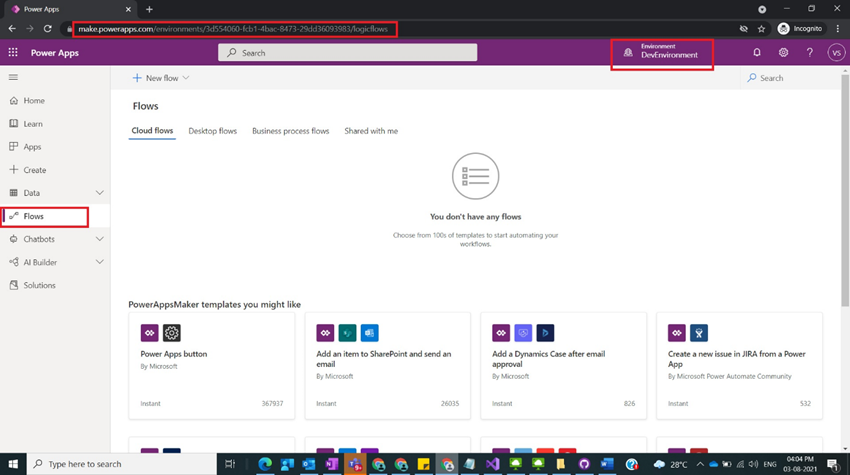

Step 1

Login to the required Power Apps environment using URL make.powerapps.com by providing username and password and click on Flows on the left-hand side as shown in the below figure.

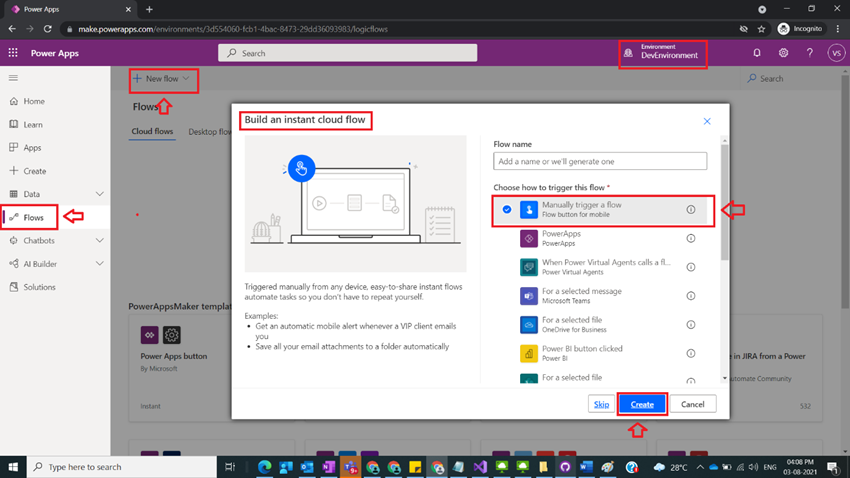

Step 2

After Step 1, Click on New Flow and select instant cloud flow and provide the trigger as Manually trigger a flow and click on Create as shown in the below figure.

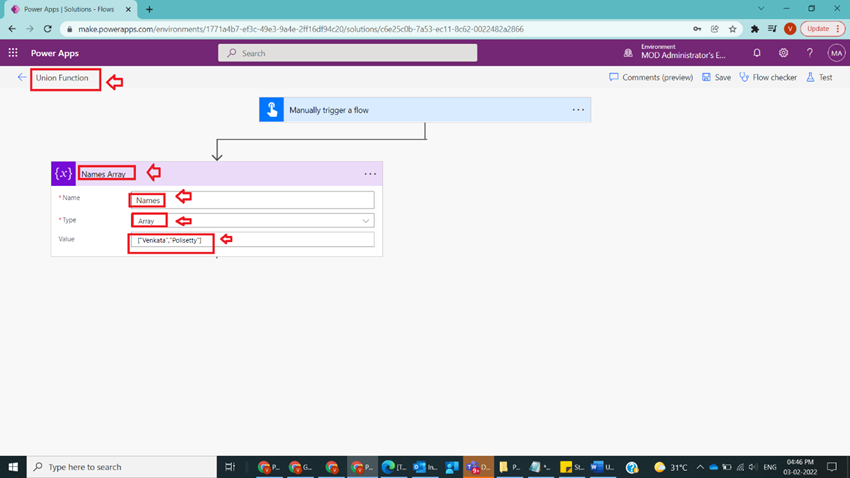

Step 3

After Step 2, name the flow as UnionFunction and take a parallel branch and one side of branch take an initialize variable and name it as Names Array and provide values

Name: Names
Type: Array
Value: ["Venkata","Polisetty"]

as shown in the below figure.

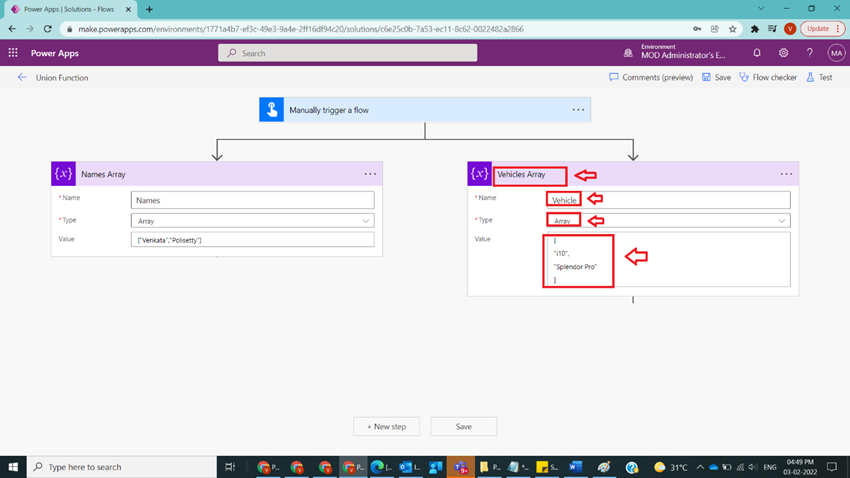

Step 4

After Step 3, to the other side of parallel branch take another initialize variable and name it as Vehicles Array and provide values

Name: Vehicle
Type: Array
Value: ["i10","Splendor Pro"]

as shown in the below figure.

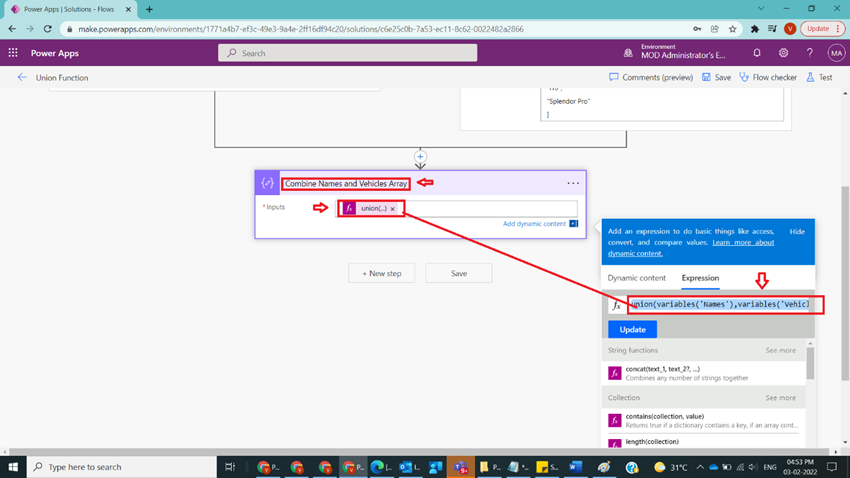

Step 5

After Step 4, under parallel branch take a compose action and name it as Combine Names and Vehicles Array and provide the inputs with union function which Returns a single array or object with all the elements that are in either array or object passed to this function. The parameters for the function can either be a set of objects or a set of arrays (not a mixture thereof). If there are two objects with the same name in the final output, the last object with that name appears in the final object.

union(collection_1: object|array, collection_2: object|array)
as
Inputs : union(variables('Names'),variables('Vehicle'))

as shown in the below figure.

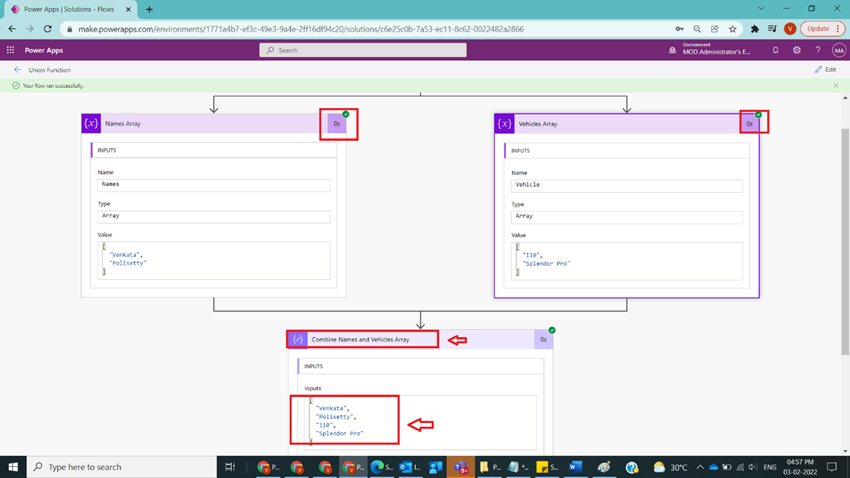

Step 6

After Step 5, save and test the flow and observe the results as shown in the below figure.

Note

1. Make sure to save and run the flow whenever you try expressions.
2. Make sure to provide input array in proper acceptable format of string array.
3. Also use double quotes for the elements in the array.
4. Parameters that you pass should be of same type either Array or Object only.

Conclusion

In this way, we can use Union function in power automate to achieve customer functionality.
