Swashbuckle And ASP.NET Core

Introduction


Swashbuckle is an open source project for generating Swagger documents for Web APIs that are built with ASP.NET Core.

There are three core components:
  • AspNetCore.SwaggerGen - provides the functionality to generate JSON Swagger documents that describe the objects, methods, return types, etc.
  • AspNetCore.SwaggerUI - an embedded version of the Swagger UI tool.
  • AspNetCore.Swagger - a Swagger object model and middleware to expose SwaggerDocument objects as JSON endpoints.
Step 1

Open Visual Studio 2017. Click -> File -> new -> Project.

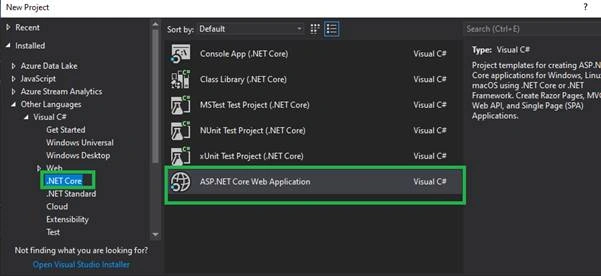

Step 2

Select .NET Core -> ASP.NET Core Web Application.

Swashbuckle And ASP.NET Core

Step 3

Create a new ASP.NET Core web application project.

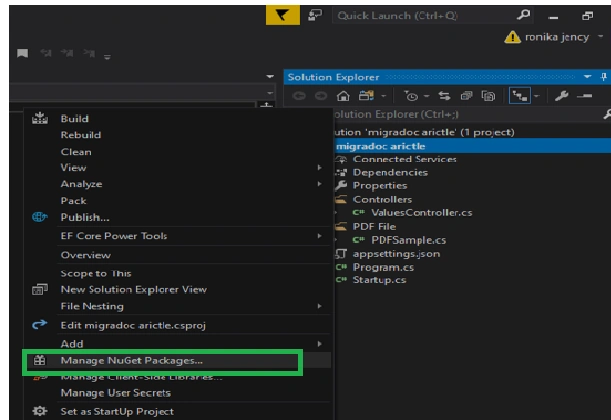

Step 4

In Solution Explorer -> solution (Right click) -> Manage Nuget Packages (select)

Swashbuckle And ASP.NET Core

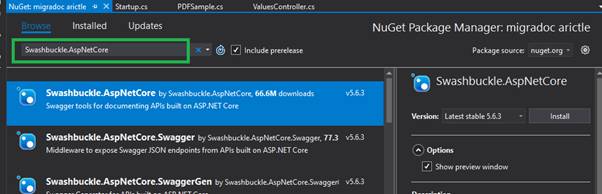

Step 5

Search the word ->Swashbuckle.AspNetCore under the browse text box.

Swashbuckle And ASP.NET Core

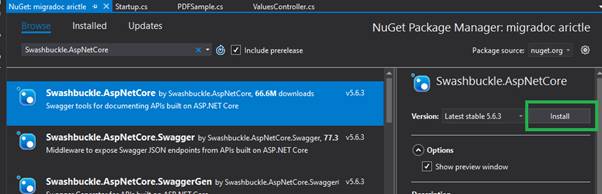

Step 6

Click the install button to install the Swashbuckle.AspNetCore

Swashbuckle And ASP.NET Core

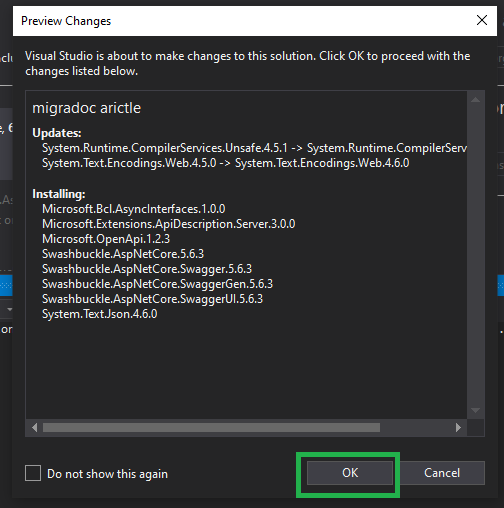

Step 7

We are going to install and update the following things. Click the OK button.

Swashbuckle And ASP.NET Core

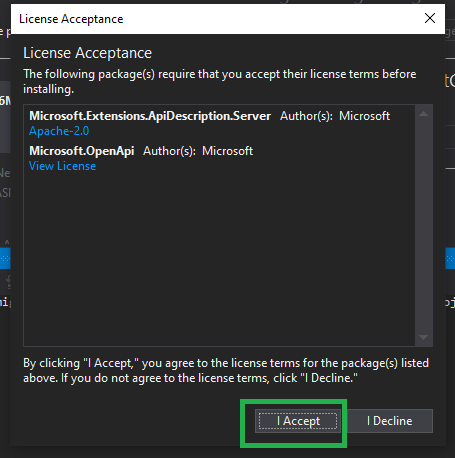

Step 8

Accept their license term -> click ok.

Swashbuckle And ASP.NET Core

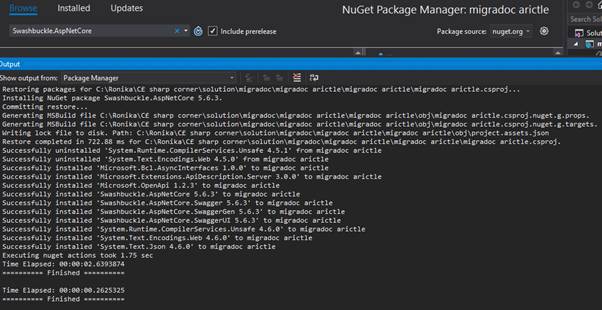

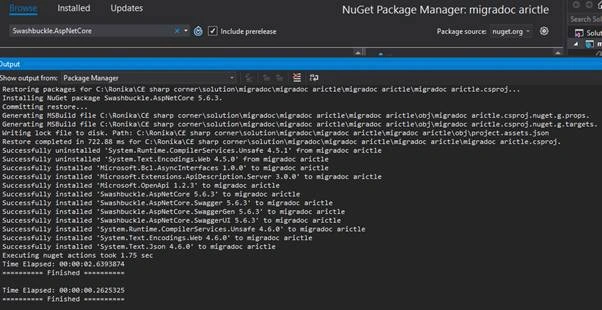

Step 9

Installed the Swashbuckle.AspNetCore successfully. You can see the output window.

Swashbuckle And ASP.NET Core

Step 10

Configure the startup.cs file
  1. using Microsoft.AspNetCore.Builder;
  2. using Microsoft.AspNetCore.Hosting;
  3. using Microsoft.Extensions.Configuration;
  4. using Microsoft.Extensions.DependencyInjection;
  5. using Microsoft.OpenApi.Models;
  6. using System;
  7. namespace migradoc_arictle {
  8.     public class Startup {
  9.         public Startup(IConfiguration configuration) {
  10.             Configuration = configuration;
  11.         }
  12.         public IConfiguration Configuration {
  13.             get;
  14.         }
  15.         // This method gets called by the runtime. Use this method to add services to the container.
  16.         public void ConfigureServices(IServiceCollection services) {
  17.             services.AddMvc();
  18.             services.AddSwaggerGen(c => {
  19.                 c.SwaggerDoc("v1", newOpenApiInfo {
  20.                     Version = "v1",
  21.                         Title = "Test API",
  22.                         Description = "ASP.NET Core Web API",
  23.                         TermsOfService = new Uri("https://example.com/termslinks"),
  24.                         Contact = newOpenApiContact {
  25.                             Name = "Ronika Jency",
  26.                                 Email = string.Empty,
  27.                                 Url = new Uri("https://twitter.com/ronikajency"),
  28.                         },
  29.                 });
  30.             });
  31.         }
  32.         // This method gets called by the runtime. Use this method to configure the HTTP request pipeline.
  33.         public void Configure(IApplicationBuilder app, IHostingEnvironmentenv) {
  34.             if (env.IsDevelopment()) {
  35.                 app.UseDeveloperExceptionPage();
  36.             }
  37.             app.UseMvc();
  38.             app.UseSwagger();
  39.             app.UseSwaggerUI(c => {
  40.                 c.SwaggerEndpoint("/swagger/v1/swagger.json""Test API V1");
  41.             });
  42.         }
  43.     }
  44. }

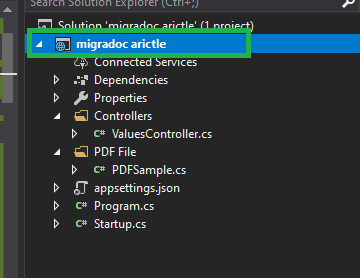

Step 11

Solution name (right-click)

Swashbuckle And ASP.NET Core

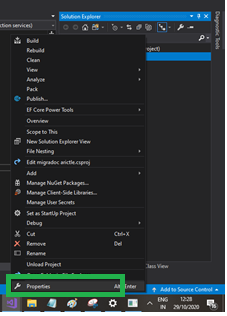

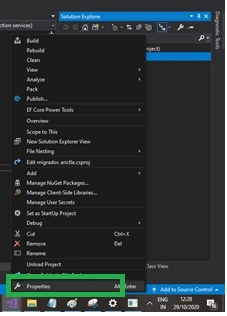

Step 12

Click -> Properties

Swashbuckle And ASP.NET Core

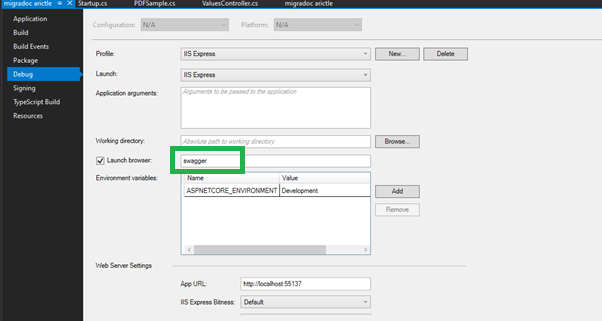

Step 13

Debug -> Change the browser URL to swagger.

Swashbuckle And ASP.NET Core

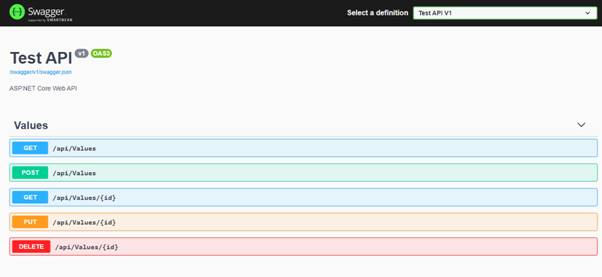

Step 14

After running the application you can able to check the API via Swagger.

Swashbuckle And ASP.NET Core
