Bind Combo Box With Data Base In C# Windows Desktop Application

Hello friends. In this article I will tell you how you can retrieve database column value in the combo box of C# Windows desktop applications. So let's start .

Step 1

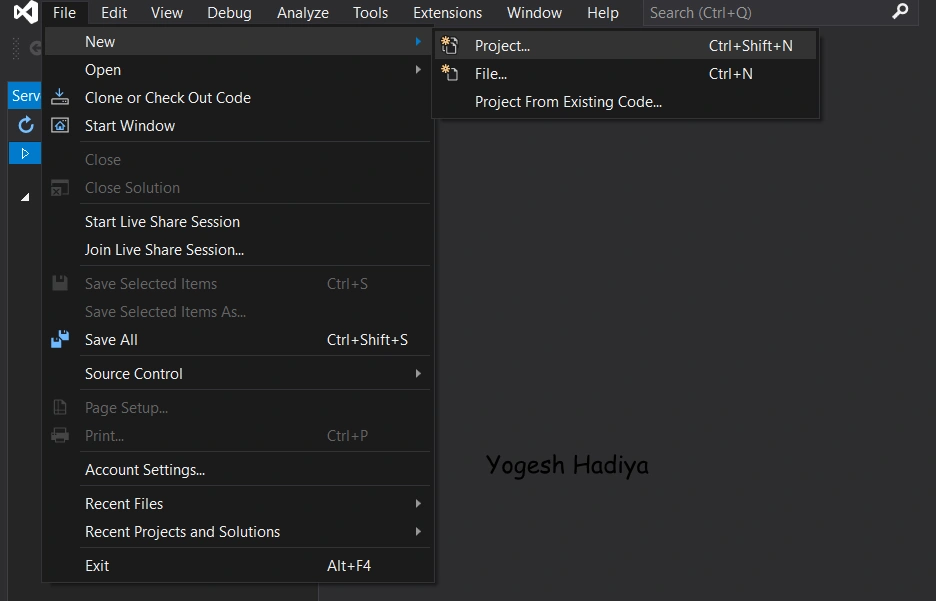

Open your Visual Studio and create a new project from File Menu > New > Project

Save Image In Row Format / Bytes Into Database And Fetch From Database In C# Windows Desktop Application

Step 2

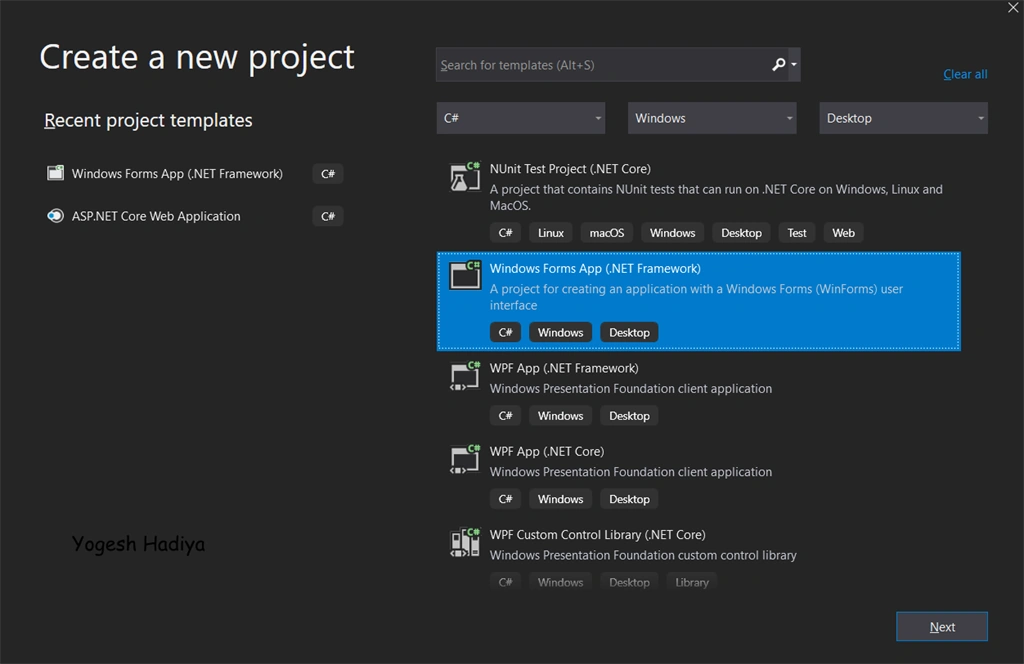

Select Windows desktop app from menu:

Save Image In Row Format / Bytes Into Database And Fetch From Database In C# Windows Desktop Application

Step 3

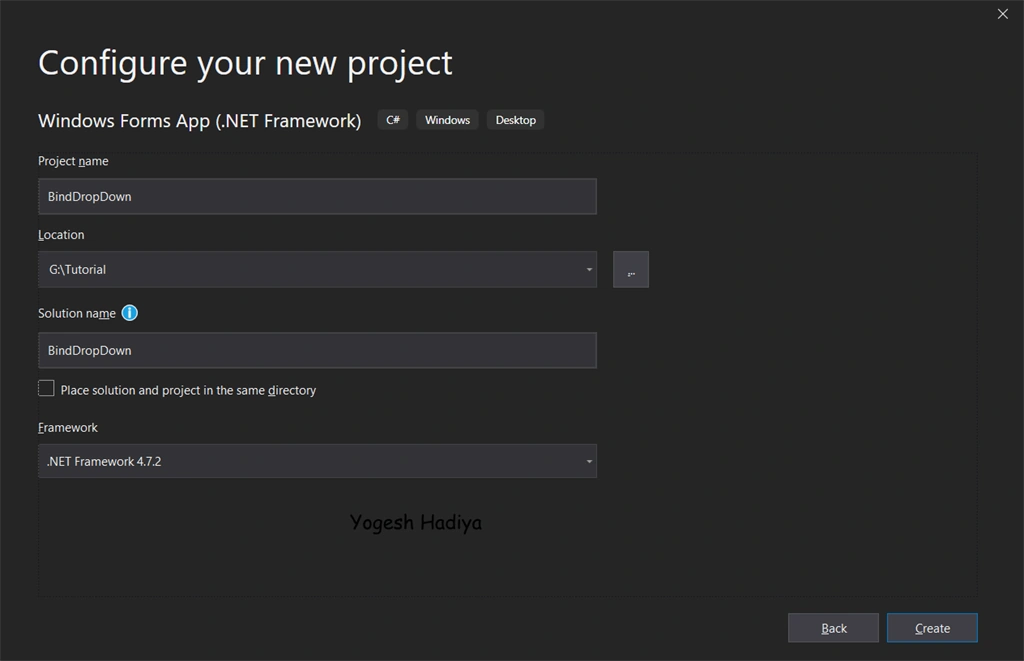

Enter your project name and path of your location where you want to save your project.

Save Image In Row Format / Bytes Into Database And Fetch From Database In C# Windows Desktop Application

Step 4

Create design as you want. As you see in the below image here I only added label and a combo box which is empty.

Save Image In Row Format / Bytes Into Database And Fetch From Database In C# Windows Desktop Application

Step 5

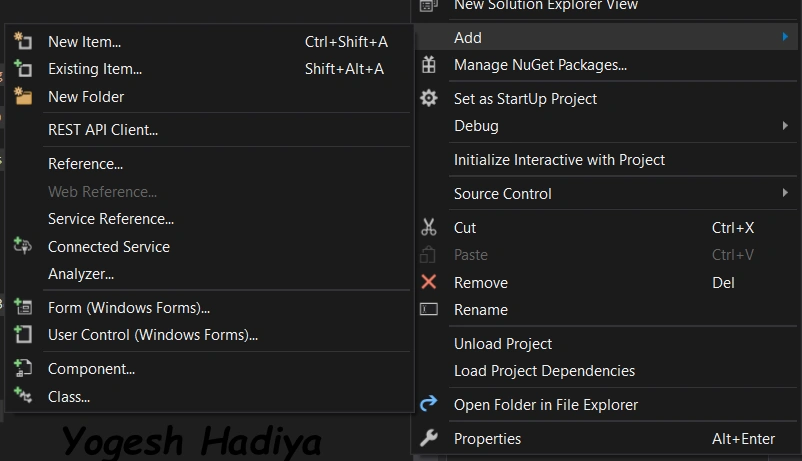

Now add database file. Click on your project name from Solution Explorer Add > New file or you can simply use short cut key Ctrl+Shift+A

Save Image In Row Format / Bytes Into Database And Fetch From Database In C# Windows Desktop Application

Step 6

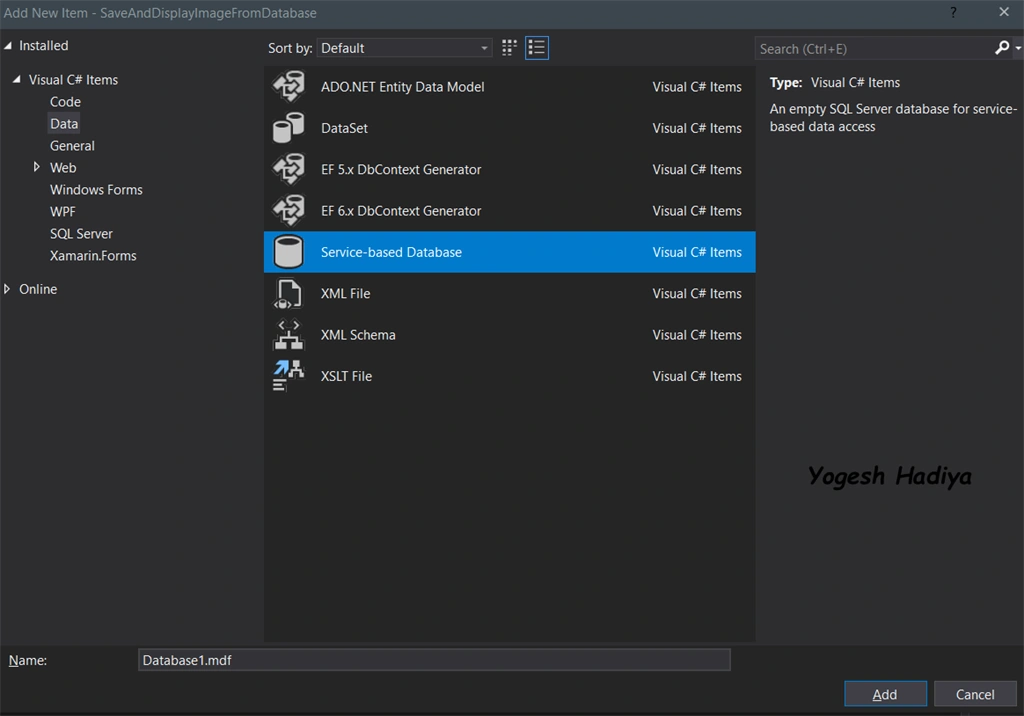

Select service based database. Give name as you want and click on add.

Save Image In Row Format / Bytes Into Database And Fetch From Database In C# Windows Desktop Application

Step 7

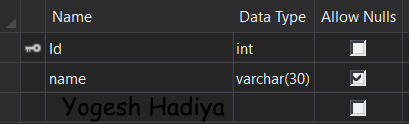

Now create a new table. Double click on your database file; it will open Server Explorer. Then right click on Table > Add New Table . As you see in the below image our table has only two columns,  Id And Name .

Save Image In Row Format / Bytes Into Database And Fetch From Database In C# Windows Desktop Application

Here is the data of our table,

Save Image In Row Format / Bytes Into Database And Fetch From Database In C# Windows Desktop Application

Step 8

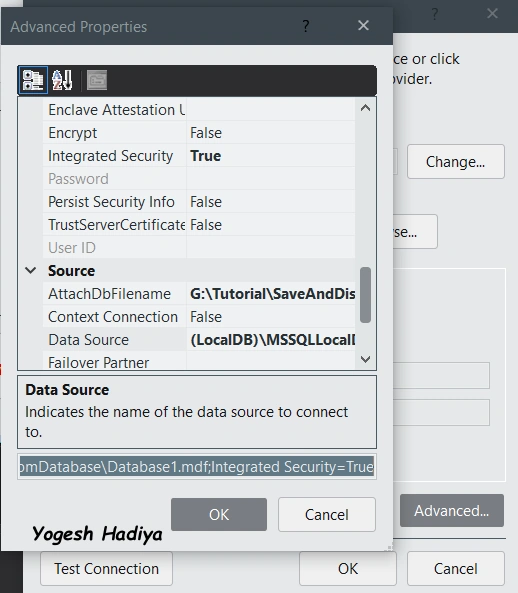

Now copy your connection string by right clicking on Database Name > Modify Connection > Advance .

Save Image In Row Format / Bytes Into Database And Fetch From Database In C# Windows Desktop Application

Step 9

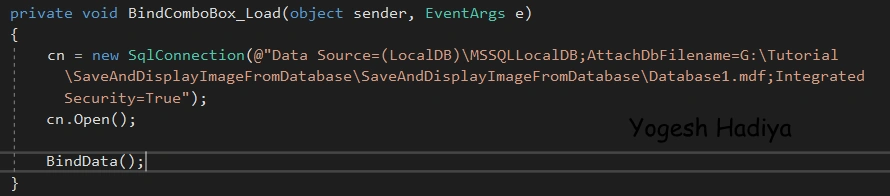

Now add new SQL Connection on your form load event as shown in the below image .

Save Image In Row Format / Bytes Into Database And Fetch From Database In C# Windows Desktop Application

Step 10

Here I created a separate function for getting data from database and bound it in combo box and I called that function in form load event. You can also write that code directly on form load event.

Save Image In Row Format / Bytes Into Database And Fetch From Database In C# Windows Desktop Application

Step 11

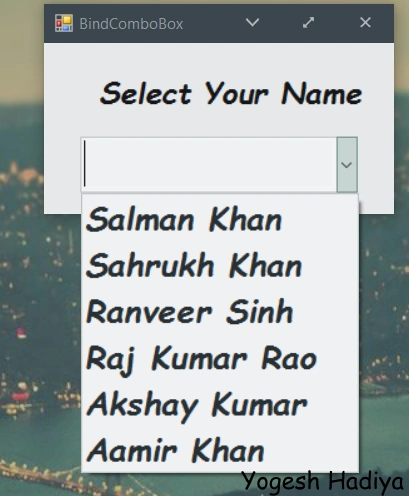

Now run your application. As you can see that combo box gets all the names from the database.

Save Image In Row Format / Bytes Into Database And Fetch From Database In C# Windows Desktop Application

Below is the full source code of this project,
  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel;
  4. using System.Data;
  5. using System.Drawing;
  6. using System.Linq;
  7. using System.Text;
  8. using System.Threading.Tasks;
  9. using System.Windows.Forms;
  10. using System.Data.SqlClient;
  11. namespace SaveAndDisplayImageFromDatabase
  12. {
  13.     public partial class BindComboBox : Form
  14.     {
  15.         public BindComboBox()
  16.         {
  17.             InitializeComponent();
  18.         }
  19.         SqlConnection cn;
  20.         SqlCommand cmd;
  21.         SqlDataReader dr;
  22.         private void BindComboBox_Load(object sender, EventArgs e)
  23.         {
  24.             cn = new SqlConnection(@"Data Source=(LocalDB)\MSSQLLocalDB;AttachDbFilename=G:\Tutorial\SaveAndDisplayImageFromDatabase\SaveAndDisplayImageFromDatabase\Database1.mdf;Integrated Security=True");
  25.             cn.Open();
  26.
  27.             BindData();
  28.         }
  29.         public void BindData()
  30.         {
  31.             cmd = new SqlCommand("select name from Table1", cn);
  32.             dr = cmd.ExecuteReader();
  33.             while(dr.Read())
  34.             {
  35.                 comboBox1.Items.Add(dr[0].ToString());
  36.             }
  37.             dr.Close();
  38.         }
  39.
  40.     }

I hope you find this article helpful. If you learned anything from this article kindly share with your friends. Thank you.
