How To Use Activity Indicator On Popup Window In Xamarin iOS App

Introduction

Xamarin is a platform to develop cross-platform and multi-platform apps (for example, Windows phone, Android and iOS). In Xamarin platform, the code sharing concept is used. In Xamarin Studio, Visual Studio is also available.



Prerequisites
  • Xamarin Studio.
  • Xcode.
The steps given below are required to be followed in order to use an Activity Indicator on Popup Window in Xamarin iOS, using Xamarin Studio.

Step 1

Go to Xamarin Studio.

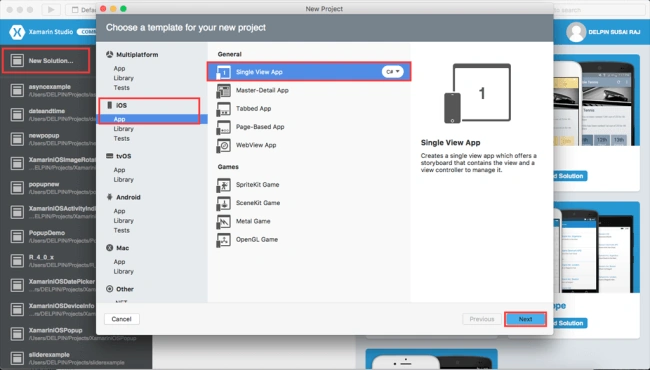

Click New Solution—> select iOS—>select app--> Choose single View app. Afterwards, click Next.



Step 2

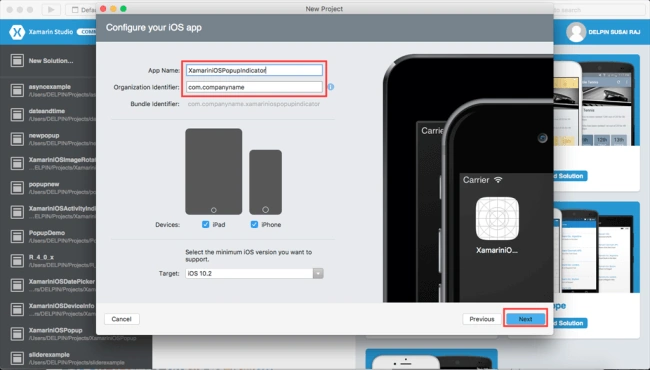

In this step, configure your app. Give the app name (Ex:sample), Organization Identifier. Afterwards, click Next.



Step 3

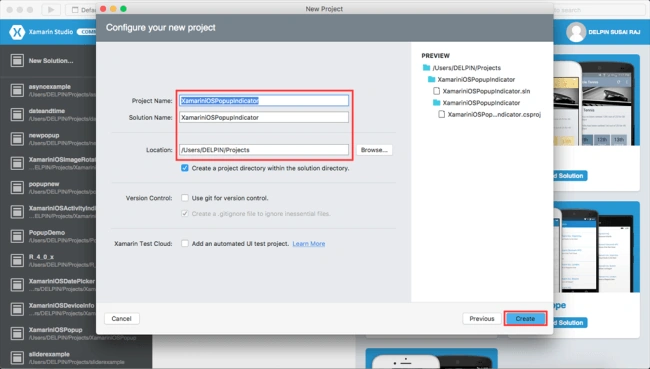

In this step, give your project name (Ex: Sample) and solution name (Ex: Sample). Give the path of your project. Afterwards, click Create.



Step 4

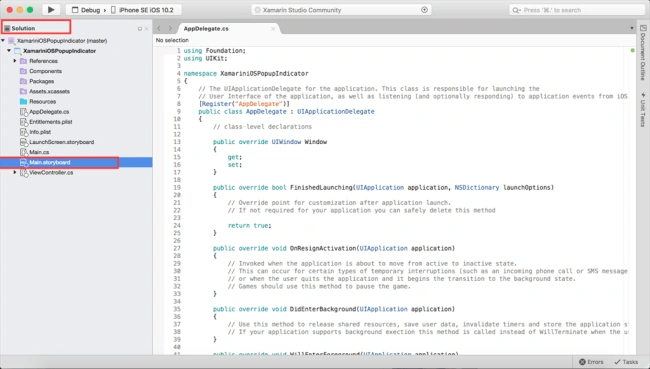

Subsequently, go to the solution. In the solution, get all the files and sources in your project. Now, select Main.storyboard and double click to open Main.storyboard page.



Step 5

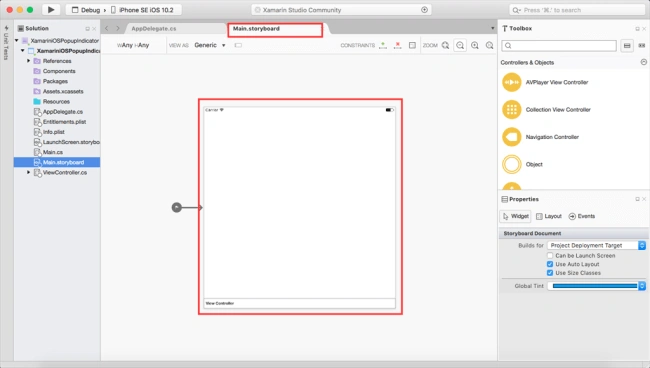

After opening the Main.storyboard, you can design this page, as per your desire.



Step 6

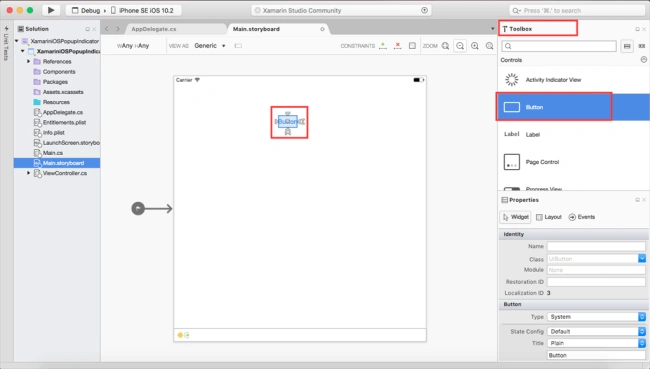

Now, go to the toolbox Window. In the toolbox Window, get all the types of the tools and controls. You need to go to the toolbox Window. Now, scroll down and you will see all the tools and controls. You need to drag and drop the button.

Now, you need to align the button, using the constraints.



Step 7

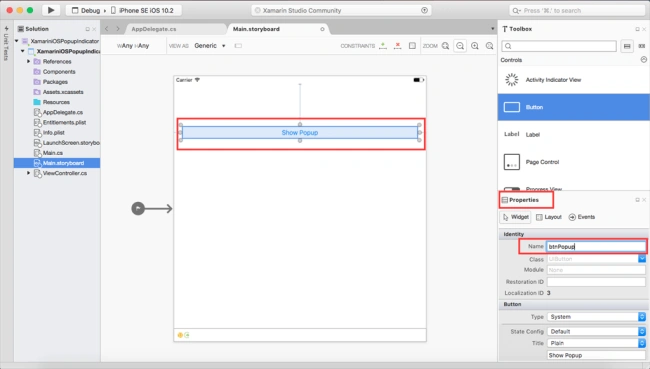

Now, go to the properties Window. Select the button and give a name (Ex:btnPopup).



Step 8

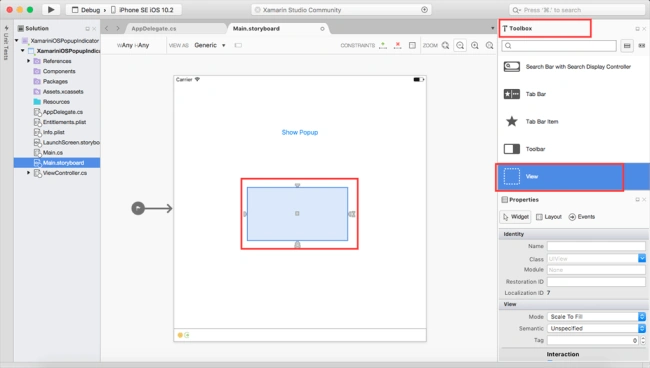

You need to drag and drop the View.

Now, you need to align the View, using the constraints.



Step 9

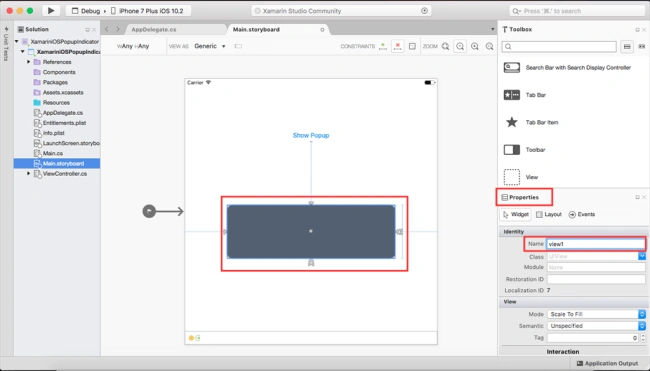

Now, go to the properties Window. Select the view and give a name (Ex:view1).



Step 10

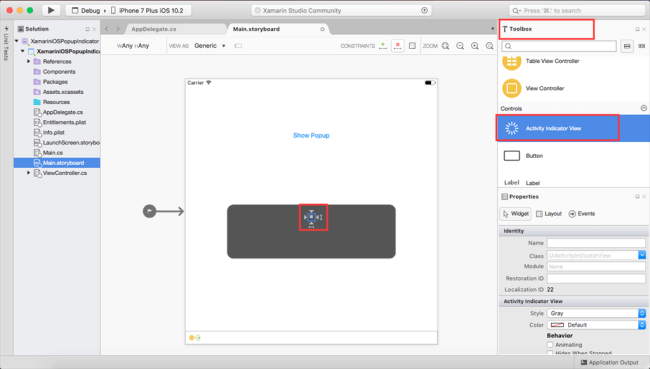

You need to drag and drop the Activity Indicator on the View.

Now, you need to align the Activity Indicator, using the constraints.



Step 11

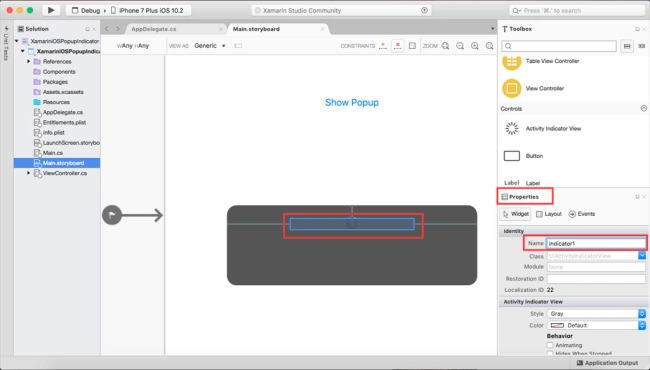

Now, go to the Properties Window. Select the Activity Indicator and give a name(Ex:indicator1).



Step 12

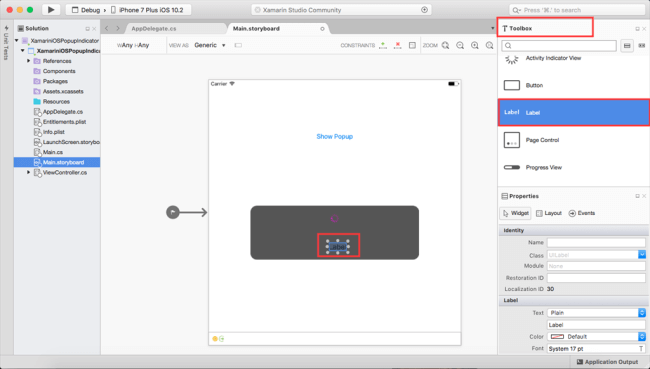

You need to drag and drop the Label on the View.

Now, you need to align the Label, using the constraints.



Step 13

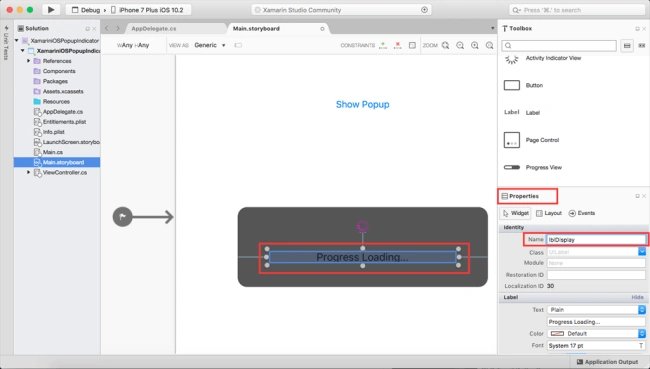

Now, go to the properties Window. Select the Label and give a name (Ex:lblDisplay).



Step 14

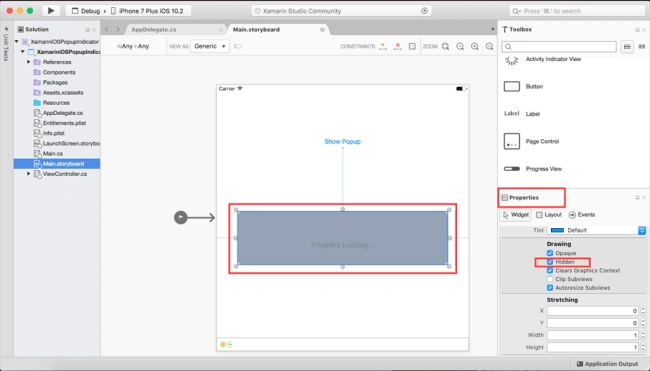

Now, go to the properties Window. Select the View and check the hidden option.



Step 15

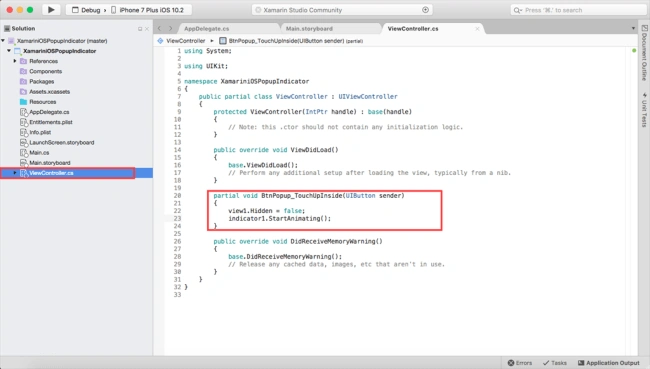

In this step, go to the ViewController.cs page. Write the code given below.

ViewController.cs
  1. using System;
  2. using UIKit;
  3. namespace XamariniOSPopupIndicator {
  4.     public partial class ViewController: UIViewController {
  5.         protected ViewController(IntPtr handle): base(handle) {
  6.             // Note: this .ctor should not contain any initialization logic.
  7.         }
  8.         public override void ViewDidLoad() {
  9.             base.ViewDidLoad();
  10.             // Perform any additional setup after loading the view, typically from a nib.
  11.         }
  12.         partial void BtnPopup_TouchUpInside(UIButton sender) {
  13.             view1.Hidden = false;
  14.             indicator1.StartAnimating();
  15.         }
  16.         public override void DidReceiveMemoryWarning() {
  17.             base.DidReceiveMemoryWarning();
  18.             // Release any cached data, images, etc that aren't in use.
  19.         }
  20.     }
  21. }


Step 16

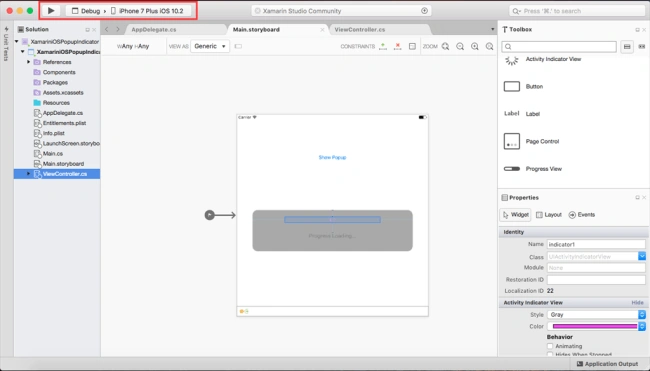

Now, go to Run option , choose Debug, the list of iPhone and iPad simulators, which are available. You can choose any one simulator and run it.



Output

After few seconds, the app will start running on your iPhone simulator. You will see your app working successfully.



You can click the Show Popup button, Activity Indicator will be started on the popup successfully.



Summary

This was the process of how to use an Activity Indicator on Popup Window in Xamarin iOS, using Xamarin Studio.
