How To Rotate An Image In Xamarin iOS App

Introduction

Xamarin is a platform to develop cross-platform and multi-platform apps (for example, Windows phone, Android and iOS). In Xamarin platform, the code sharing concept is used. In Xamarin Studio, Visual Studio is also available.





Prerequisites

Xamarin Studio.

Xcode.

The steps given below are required to be followed in order to rotate an image in Xamarin iOS, using Xamarin Studio.

Step 1

Go to Xamarin Studio.

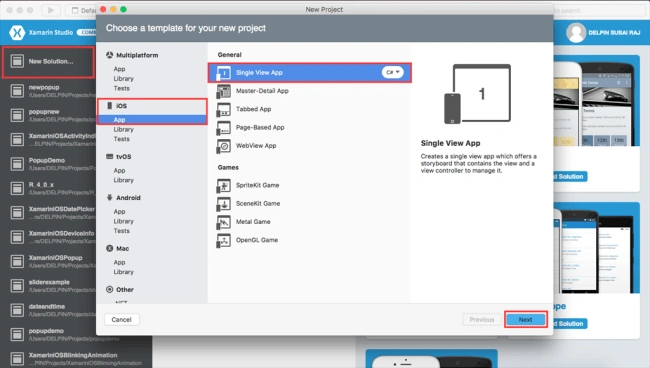

Click New Solution—> select iOS—>select App--> choose Single View App. Afterwards, click Next.



Step 2

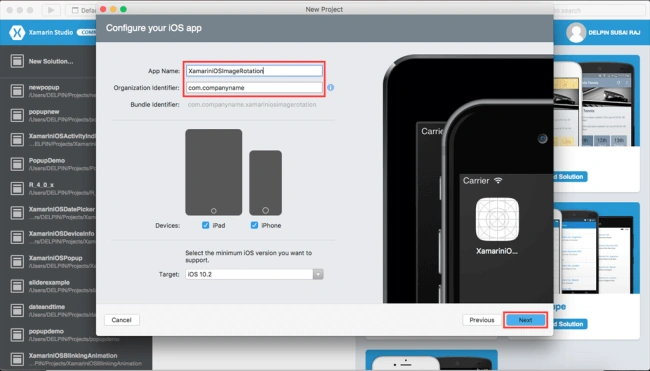

In this step, configure your app. Give the app name (Ex:sample), Organization Identifier. Afterwards, click Next.



Step 3

In this step, give your project name (Ex: Sample) and solution name (Ex: Sample). Give the path of your project. Afterwards, click Create.



Step 4

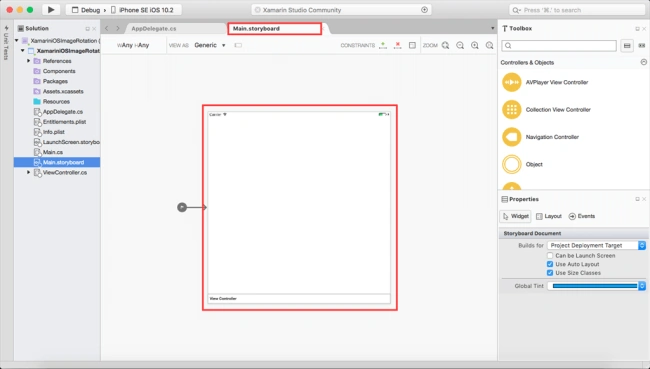

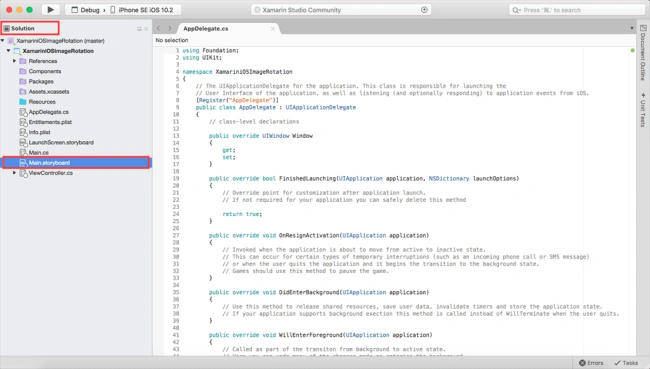

Subsequently, go to the solution. In the solution, get all the files and sources in your project. Now, select Main.storyboard and double click to open Main.storyboard page.





Step 5

After opening the Main.storyboard, you can design this page, as per your desire.





Step 6

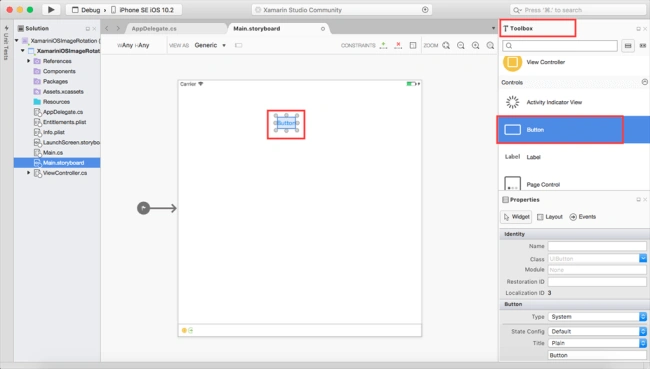

Now, go to the toolbox Window. In the toolbox Window, get all the types of the tools and controls. You need to go to the toolbox Window. Now, scroll down and you will see all the tools and controls. You need to drag and drop the button.

Now, you need to align the button, using constraints.





Step 7

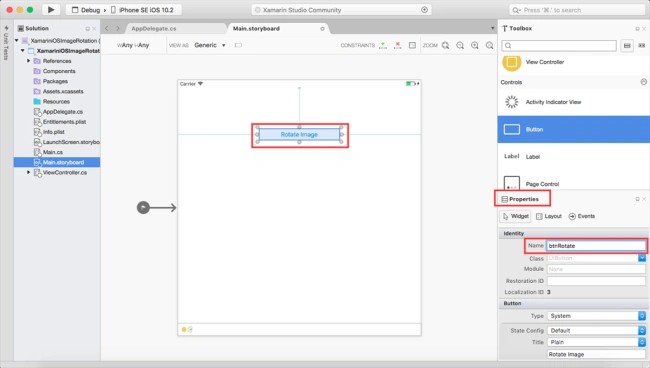

Now, go to the properties Window. Select the button and give a name (Ex:btnRotate).





Step 8

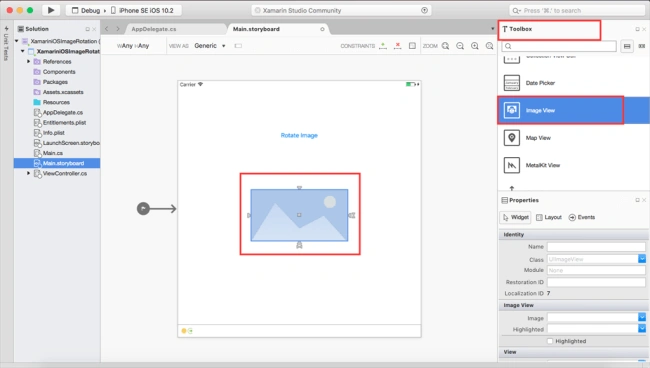

You need to drag and drop the image view.

Now, you need to align the image view, using constraints.





Step 9

In this step, add the image form your Local system.

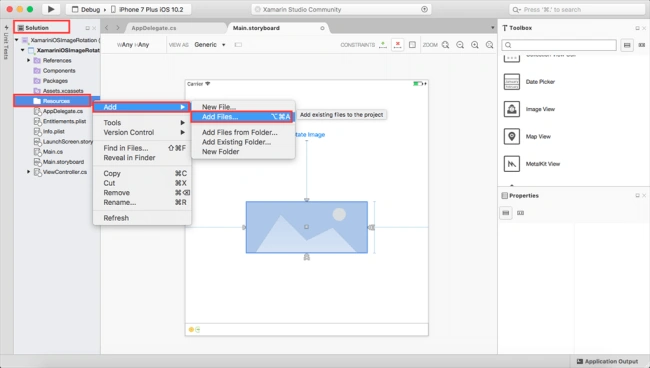

Go to Solution—>Resource-->Right click-->Add-->Add Files.





Step 10

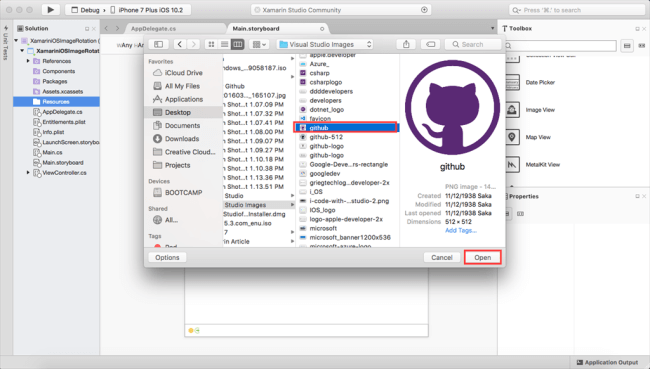

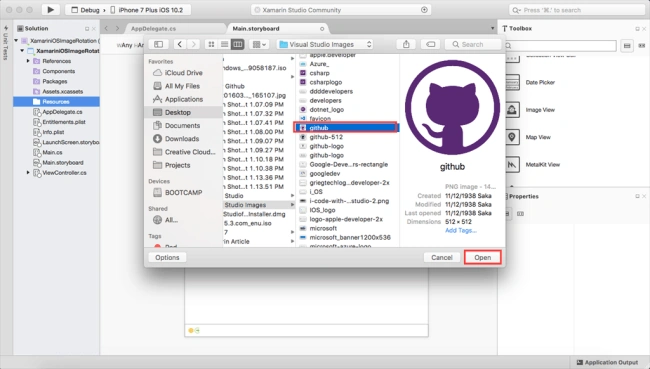

Now, you can choose the required image. Click Open.





Step 11

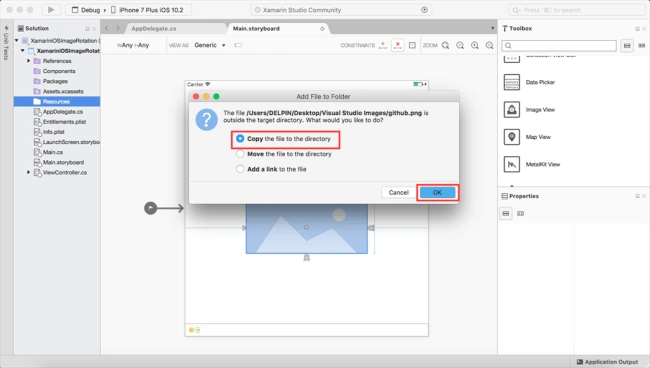

Now, choose Copy the Files to the directory. Afterwards, click OK.



Step 12

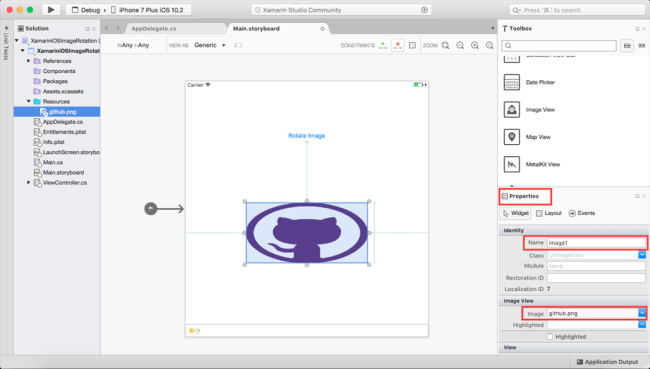

Now, go to the properties Window. Select the image view and give a name (Ex:image1) and choose the image.





Step 13

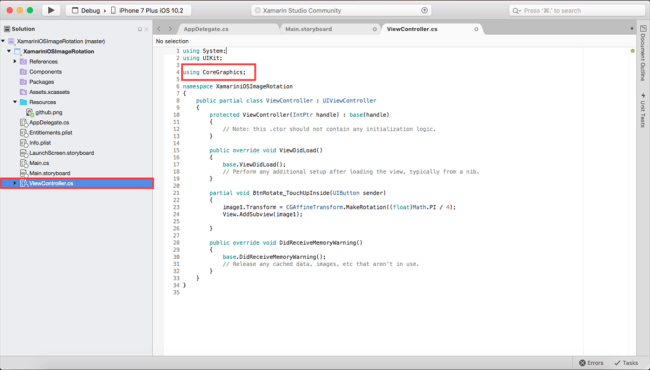

In this step, go to the ViewController.cs page, add the namespace given below.

ViewController.cs

using CoreGraphics;



Step 14

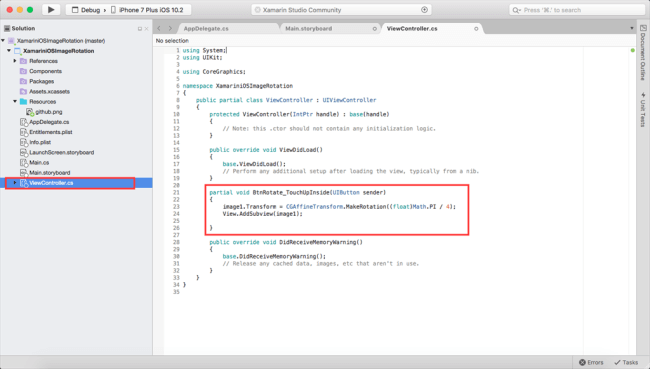

In this step, go to the ViewController.cs page. Write the code given below.

ViewController.cs

namespace XamariniOSImageRotation {
    public partial class ViewController: UIViewController {
        protected ViewController(IntPtr handle): base(handle) {
            // Note: this .ctor should not contain any initialization logic.
        }
        public override void ViewDidLoad() {
            base.ViewDidLoad();
            // Perform any additional setup after loading the view, typically from a nib.
        }
        partial void BtnRotate_TouchUpInside(UIButton sender) {
            image1.Transform = CGAffineTransform.MakeRotation((float) Math.PI / 4);
            View.AddSubview(image1);
        }
        public override void DidReceiveMemoryWarning() {
            base.DidReceiveMemoryWarning();
            // Release any cached data, images, etc that aren't in use.
        }
    }
}

Step 15

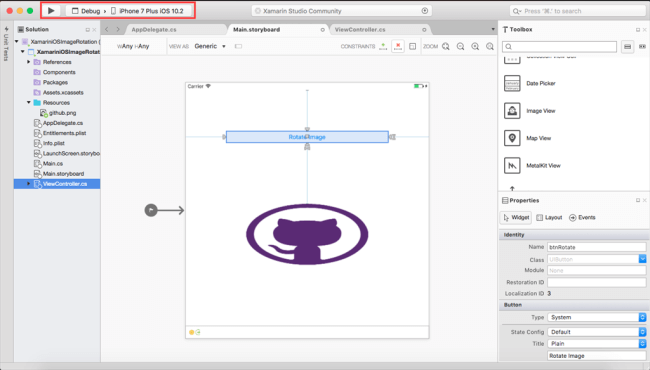

Now, go to Run option, choose Debug, and the list of iPhone and iPad simulators which are available. You can choose any one simulator and run it.





Output

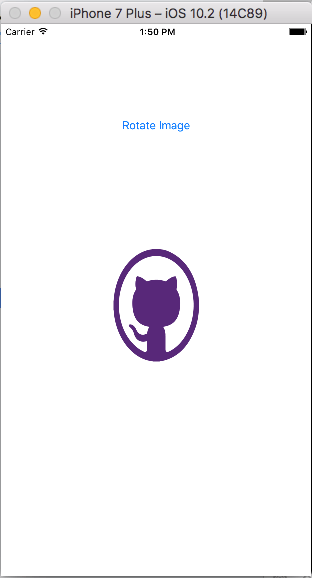

After a few seconds, the app will start running on your iPhone simulator. You will see your app is working successfully.

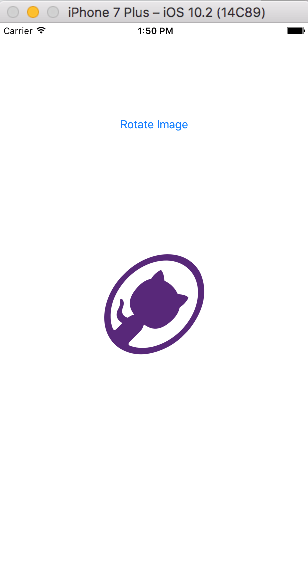

You can click the Rotate image button and the image will rotate successfully.



Summary

This was the process of how to rotate an image in Xamarin iOS, using Xamarin Studio.
