HighCharts - Area Chart

Hello, This article is about how we can create an Area chart using High chart in js.  Area chart is also known as a mountain chart. Area charts are similar to line charts, but are commonly used to visualize volumes.

CDN for using Area chart

<script src="https://code.highcharts.com/highcharts.js"></script>
<script src="https://code.highcharts.com/modules/exporting.js"></script>
<script src="https://code.highcharts.com/modules/export-data.js"></script>
<script src="https://code.highcharts.com/modules/accessibility.js"></script>

Create a HTML file i.e, Area chart.html and use below code-

<figure class="highcharts-figure">
    <div id="container"></div>
    <p class="highcharts-Brahmadescription">
        Basic Area Chart example using High chart.
    </p>
</figure>

Now, create a CSS file for styling of the Area chart.

.highcharts-figure,
.highcharts-data-table table {
    min-width: 320px;
    max-width: 800px;
    margin: 1em auto;
}

#container {
    height: 450px;
}

.highcharts-data-table table {
    font-family: Verdana, sans-serif;
    border-collapse: collapse;
    border: 1px solid yellow;
    margin: 10px auto;
    text-align: center;
    width: 100%;
    max-width: 500px;
}

.highcharts-data-table caption {
    padding: 1em 0;
    font-size: 1.2em;
    color: #555;
}

.highcharts-data-table th {
    font-weight: 600;
    padding: 0.5em;
}

.highcharts-data-table td,
.highcharts-data-table th,
.highcharts-data-table caption {
    padding: 0.5em;
}

.highcharts-data-table thead tr,
.highcharts-data-table tr:nth-child(even) {
    background: #f8f8f8;
}

.highcharts-data-table tr:hover {
    background: pink;
}

After that, create a JS file for showing data in Area chart.


Highcharts.chart('container', {
    chart: {
        type: 'area'
    },
    accessibility: {
        description: ''
    },
    title: {
        text: 'Highest Employees Salary'
    },
    subtitle: {
        text: 'Created By Brahma Prakash Shukla'
    },
    xAxis: {
        allowDecimals: false,
        labels: {
            formatter: function () {
                return this.value; // clean, unformatted number for year
            }
        },
        accessibility: {
            rangeDescription: 'Range: 1940 to 2017.'
        }
    },
    yAxis: {
        title: {
            text: 'Salary'
        },
        labels: {
            formatter: function () {
                return this.value / 1000 + 'k';
            }
        }
    },
    tooltip: {
        pointFormat: '{series.name} had stockpiled <b>{point.y:,.0f}</b><br/>warheads in {point.x}'
    },
    plotOptions: {
        area: {
            pointStart: 1940,
            marker: {
                enabled: false,
                symbol: 'circle',
                radius: 2,
                states: {
                    hover: {
                        enabled: true
                    }
                }
            }
        }
    },
    series: [{
        name: 'Aman',
        data: [
            null, null, null, null, null, 2, 9, 13, 50, 170, 299, 438, 841,
            1169, 1703, 2422, 3692, 5543, 7345, 12298, 18638, 22229, 25540,
            28133, 29463, 31139, 31175, 31255, 29561, 27552, 26008, 25830,
            26516, 27835, 28537, 27519, 25914, 25542, 24418, 24138, 24104,
            23208, 22886, 23305, 23459, 23368, 23317, 23575, 23205, 22217,
            21392, 19008, 13708, 11511, 10979, 10904, 11011, 10903, 10732,
            10685, 10577, 10526, 10457, 10027, 8570, 8360, 7853, 5709, 5273,
            5113, 5066, 4897, 4881, 4804, 4717, 4571, 4018, 3822, 3785, 3805,
            3750, 3708, 3708
        ]
    }, {
        name: 'Kishan',
        data: [null, null, null, null, null, null, null, null, null,
            1, 5, 25, 50, 120, 150, 200, 426, 660, 863, 1048, 1627, 2492,
            3346, 4259, 5242, 6144, 7091, 8400, 9490, 10671, 11736, 13279,
            14600, 15878, 17286, 19235, 22165, 24281, 26169, 28258, 30665,
            32146, 33486, 35130, 36825, 38582, 40159, 38107, 36538, 35078,
            32980, 29154, 26734, 24403, 21339, 18179, 15942, 15442, 14368,
            13188, 12188, 11152, 10114, 9076, 8038, 7000, 6643, 6286, 5929,
            5527, 5215, 4858, 4750, 4650, 4600, 4500, 4490, 4300, 4350, 4330,
            4310, 4495, 4477
        ]
    }]
});

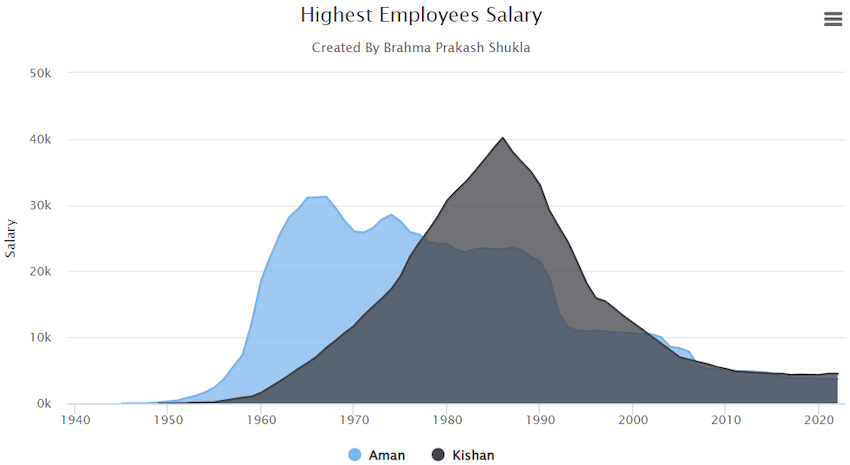

Now, your chart will look like this -

Area chart using Highchart

Another example of Area Chart -

<html>
   <head>
      <title>Area Chart</title>
      <script src = "https://ajax.googleapis.com/ajax/libs/jquery/2.1.3/jquery.min.js">
      </script>
      <script src = "https://code.highcharts.com/highcharts.js"></script>
   </head>

   <body>
      <div id = "container" style = "width: 550px; height: 400px; margin: 0 auto"></div>
      <script language = "JavaScript">
         $(document).ready(function() {
            var chart = {
               type: 'area'
            };
            var title = {
               text: 'IT Salary Range'
            };
            var subtitle = {
               text: 'Created By Brahma Prakash Shukla'
            };
            var xAxis = {
               allowDecimals: false,
               labels: {
                  formatter: function () {
                     return this.value;
                  }
               }
            };
            var yAxis = {
               title: {
                  text: 'Salary Range'
               },
               labels: {
                  formatter: function () {
                     return this.value / 1000 + 'k';
                  }
               }
            };
            var tooltip = {
               pointFormat: '{series.name} produced <b>{point.y:,.0f}</b><br/>warheads in {point.x}'
            };
            var plotOptions = {
               area: {
                  pointStart: 1940,
                  marker: {
                     enabled: false,
                     symbol: 'circle',
                     radius: 2,

                     states: {
                        hover: {
                           enabled: true
                        }
                     }
                  }
               }
            };
            var series = [
               {
                  name: 'Developer',
                  data: [null, null, null, null, null, 6, 11, 32, 110, 235, 369, 640,
                     1005, 1436, 2063, 3057, 4618, 6444, 9822, 15468, 20434, 24126,
                     27387, 29459, 31056, 31982, 32040, 31233, 29224, 27342, 26662,
                     26956, 27912, 28999, 28965, 27826, 25579, 25722, 24826, 24605,
                     24304, 23464, 23708, 24099, 24357, 24237, 24401, 24344, 23586,
                     22380, 21004, 17287, 14747, 13076, 12555, 12144, 11009, 10950,
                     10871, 10824, 10577, 10527, 10475, 10421, 10358, 10295, 10104]
               },
               {
                  name: 'Designer',
                  data: [null, null, null, null, null, null, null, null, null, null,
                     5, 25, 50, 120, 150, 200, 426, 660, 869, 1060, 1605, 2471, 3322,
                     4238, 5221, 6129, 7089, 8339, 9399, 10538, 11643, 13092, 14478,
                     15915, 17385, 19055, 21205, 23044, 25393, 27935, 30062, 32049,
                     33952, 35804, 37431, 39197, 45000, 43000, 41000, 39000, 37000,
                     35000, 33000, 31000, 29000, 27000, 25000, 24000, 23000, 22000,
                     21000, 20000, 19000, 18000, 18000, 17000, 16000]
               },
               {
                  name: 'Tester',
                  data: [null, null, null, null, null, null, null, null, null, null,
                     5, 25, 50, 100, 150, 200, 426, 660, 869, 1060, 1605, 2471, 3322,
                     4238, 5221, 5129, 7089, 8339, 9399, 10538, 11643, 13092, 14478,
                     15915, 17385, 20055, 21205, 23044, 25393, 27935, 30062, 32049,
                     33952, 35804, 27431, 39197, 45000, 43000, 41000, 39000, 37000,
                     35000, 33000, 11000, 29000, 27000, 25000, 24000, 23000, 22000,
                     21000, 20000, 9000, 18000, 18000, 17000, 16000]
               }
            ];

            var json = {};
            json.chart = chart;
            json.title = title;
            json.subtitle = subtitle;
            json.tooltip = tooltip;
            json.xAxis = xAxis;
            json.yAxis = yAxis;
            json.series = series;
            json.plotOptions = plotOptions;
            $('#container').highcharts(json);
         });
      </script>
   </body>

</html>

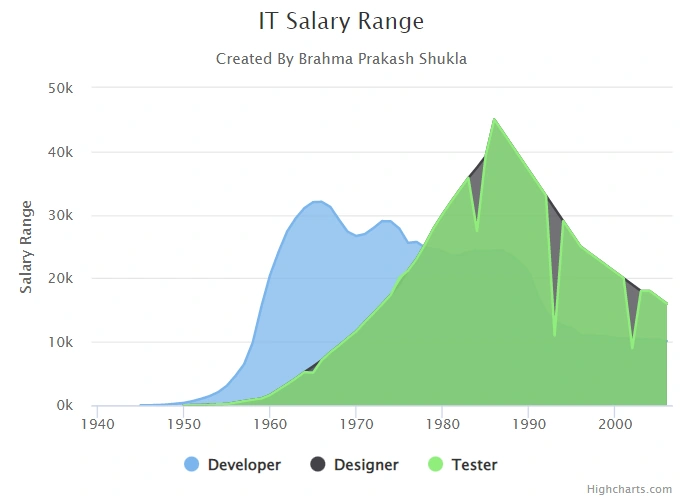

Your Area chart will look like this -

Area chart using Highchart

Hopefully, this article helps you in creating an Area chart. In other articles, I will also expalin different types of charts using highchart.

Thanks
