Button-Worked WebView In Xamarin.Forms Application

Introduction



This article demonstrates Button-worked WebView In Xamarin.Forms applications. Xamarin is a platform that allows us to create a multi-platform mobile application for platforms, like Windows, iOS, and Android through a single integrated development environment (IDE).







Let's start.



Step 1

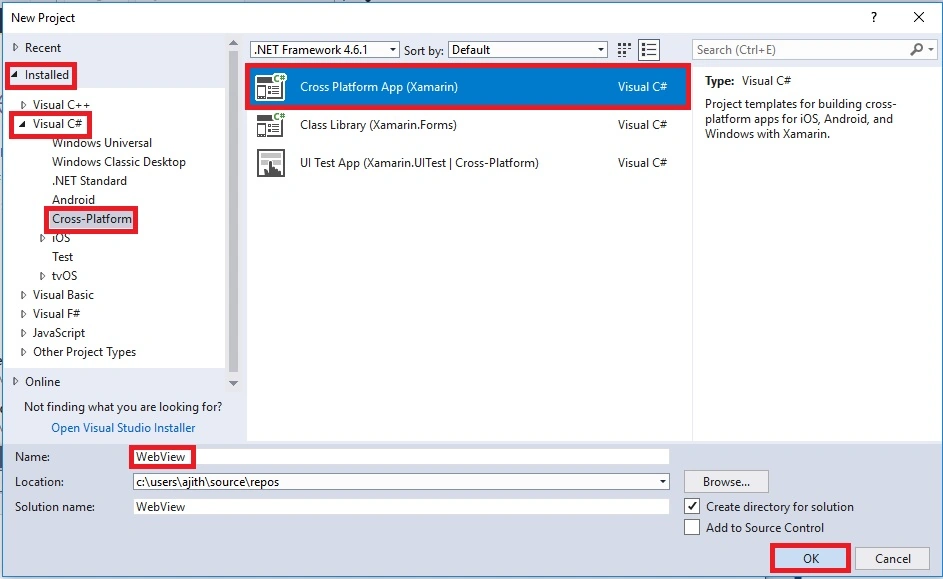

Open Visual Studio and go to New Project >> Installed >> Visual C# >> Cross-Platform.



Select Cross-Platform app, then give your project a name and location.







Step 2

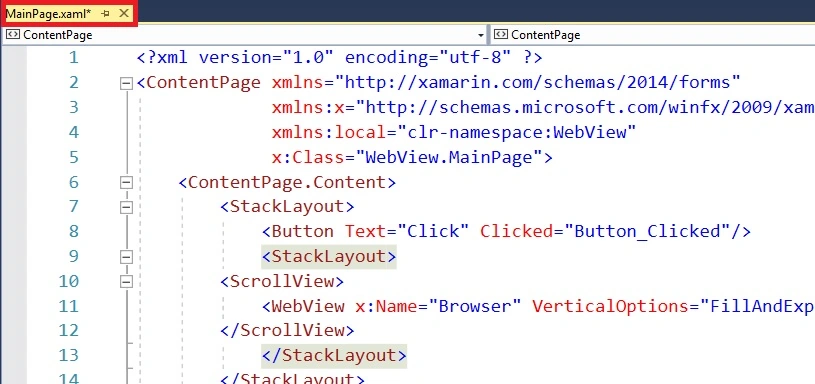

Open Solution Explorer >> Project Name (Portable) >> MainPage.xaml. Double click on the left pane and open the design view of this page.







The code is given below.







XAML Code



We are creating a button inside the StackLayout and WebView as well as Scroll View inside the StackLayout.

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:local="clr-namespace:WebView"
             x:Class="WebView.MainPage">
    <ContentPage.Content>
        <StackLayout>
            <Button Text="Click" Clicked="Button_Clicked"/>
            <StackLayout>
        <ScrollView>
            <WebView x:Name="Browser" VerticalOptions="FillAndExpand" HeightRequest="500"/>
        </ScrollView>
            </StackLayout>
        </StackLayout>
    </ContentPage.Content>
</ContentPage>

Step 3

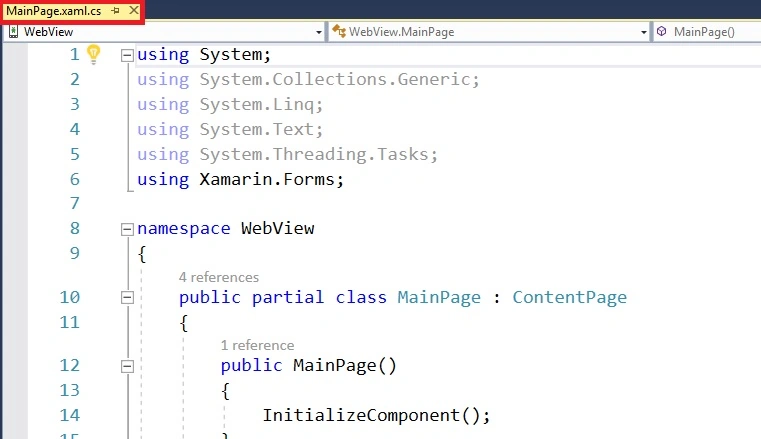

Open Solution Explorer >> Project Name (Portable) >> MainPage.xaml.cs. Double click to open the design view of this page.







The code is given below.

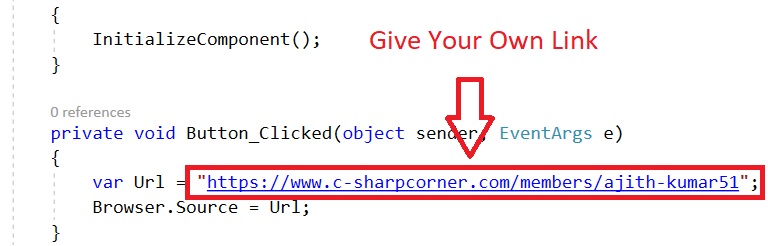

Button-worked WebView is created using this code. Give your own link in the code.







C# Code

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Xamarin.Forms;

namespace WebView
{
    public partial class MainPage : ContentPage
    {
        public MainPage()
        {
            InitializeComponent();
        }

        private void Button_Clicked(object sender, EventArgs e)
        {
            var Url = "https://www.c-sharpcorner.com/members/ajith-kumar51";
            Browser.Source = Url;
        }
    }
}

Step 4



Next, select the "Build & deploy" option, followed by selecting from the list of Android Emulator or Simulator. You can choose any API (Application Program Interface) level emulator or simulator to run it.



Output

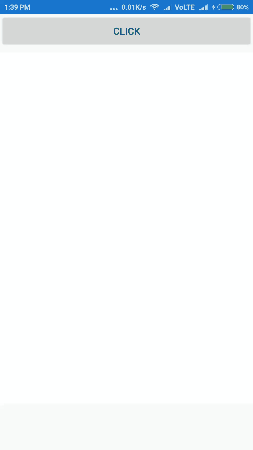

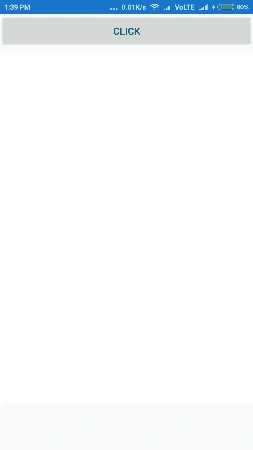

After a few seconds, you will see your app working.



Click the "Click" button. The WebView is displayed.







 Finally, we have successfully created a Xamarin.Forms Button-worked WebView.
