An Overview Of IIS 7.5 Feature - Configuration Editor

IIS configuration files can be administration.config, applicationHost.config, or website or application specific web.config. We can use this feature to edit and save those settings than generate a C# or appcmd.exe script for automation as well.

You can see my previous articles on IIS 7.5 Feature:

• An Overview Of IIS 7.5 Feature - Server Certificates
• An Overview Of IIS 7.5 Feature - Compression
• An Overview Of IIS 7.5 Feature - WebDAV
• An Overview of IIS 7.5 feature - Request Filtering
• An Overview Of IIS 7.5 Feature - Failed Request Event Buffering
• An Overview Of IIS 7.5 Feature - IP & Domain Restrictions
• An Overview Of IIS 7.5 Feature - HTTP Redirect

• An Overview Of IIS 7.5 Feature - Logging

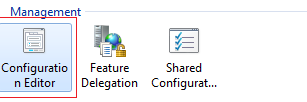

Let’s open IIS 7.5 manager and check whether Configuration Editor Module is present or not under Management section as shown below:



Let’s select server node, double-click on Configuration Editor and understand its settings:

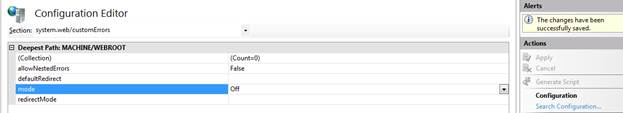

We can select a particular section and edit those settings. Let’s set customerrors mode to Off and click on Apply as shown below:

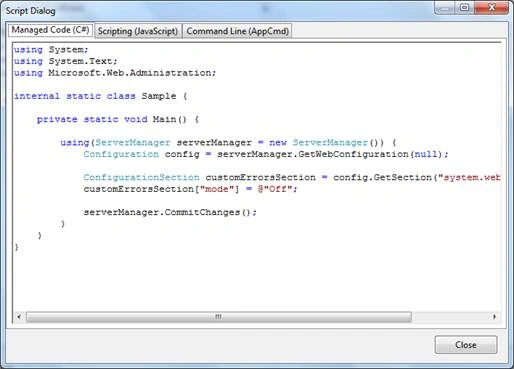

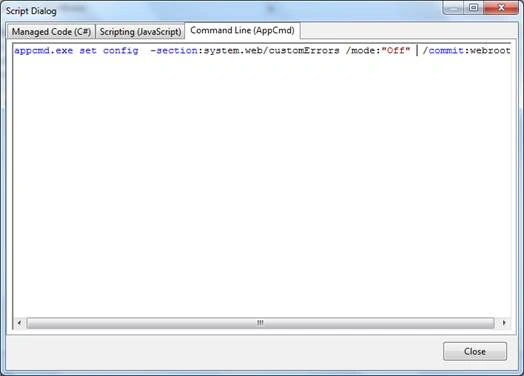

We can even generate script for this change by clicking on “Generate Script”:





We can use this C# or JS script or appcmd.exe command for automation or administration purposes.

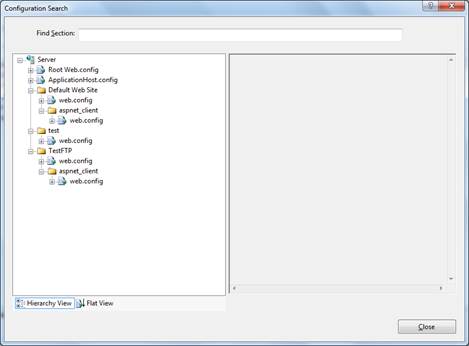

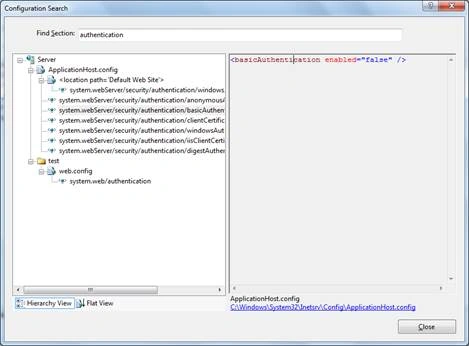

We can search for a specific entry in all configuration files by clicking on “Search Configuration”:





We can lock a section like customErrors or attribute like Mode, so that it cannot be modified in lower application level configuration files.



We can use shared configuration features in cases where a single config file has to be used by multiple IIS instances in a web form. It enables a server to access a configuration file in a UNC share as if it were its local configuration. As a result, when you update the configuration by using a front-end Web server, the updates are made to all other servers within web farm.

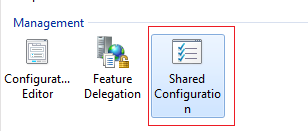

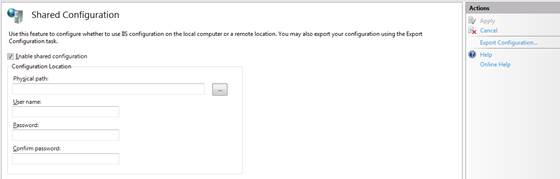

Click on Shared Configuration and enter details like remote config file path and credentials to connect to it.



We can click on “Export Configuration” to export all config files and make it available for sharing on a UNC path.



Enter a password and click on OK, this will create 3 files: administration.config and applicationHost.config and configEncKey.key.

I am ending things here on Configuration Editor and shared configuration, I hope this article will be helpful for all.
