Process CreationThe fundamental Windows process management function is CreateProcess, which creates a process with a single thread. Specify the name of an executable program file as part of the CreateProcess call.It is common to speak of parent and child processes, but Windows does not actually maintain these relationships. It is simply convenient to refer to the process that creates a child process as the parent.CreateProcess has 10 parameters to support its flexibility and power.Initially, it is simplest to use default values. Just as with CreateFile, it is appropriate to explain all the CreateProcess parameters. Related functions are then easier to understand.Note first that the function does not return a HANDLE; rather, two separate handles, one each for the process and the thread, are returned in a structure specified in the call. CreateProcess creates a new process with a single primary thread (which might create additional threads). The example programs are always very careful to close both of these handles when they are no longer needed in order to avoid resource leaks; a common defect is to neglect to close the thread handle. Closing a thread handle, for instance, does not terminate the thread; the CloseHandle function only deletes the reference to the thread within the process that called CreateProcess.BOOL CreateProcess (LPCTSTR lpApplicationName,LPTSTR lpCommandLine,LPSECURITY_ATTRIBUTES lpsaProcess,LPSECURITY_ATTRIBUTES lpsaThread,BOOL bInheritHandles,DWORD dwCreationFlags,LPVOID lpEnvironment,LPCTSTR lpCurDir,LPSTARTUPINFO lpStartupInfo,LPPROCESS_INFORMATION lpProcInfo)Return: TRUE only if the process and thread are successfully created.ParametersSome parameters require extensive explanations in the following sections, and many are illustrated in the program examples.lpApplicationName and lpCommandLine (this is an LPTSTR and not an LPCTSTR) together specify the executable program and the command line arguments, as explained in the next section.lpsaProcess and lpsaThread point to the process and thread security attribute structures. NULL values imply default security and will be used until Chapter 15, which covers Windows security.bInheritHandles indicates whether the new process inherits copies of the calling process's inheritable open handles (files, mappings, and so on). Inherited handles have the same attributes as the originals and are discussed in detail in a later section.dwCreationFlags combines several flags, including the following.
Several of the flags control the priority of the new process's threads. The possible values are explained in more detail at the end of Chapter 7. For now, just use the parent's priority (specify nothing) or NORMAL_PRIORITY_CLASS.lpEnvironment points to an environment block for the new process. If NULL, the process uses the parent's environment. The environment block contains name and value strings, such as the search path.lpCurDir specifies the drive and directory for the new process. If NULL, the parent's working directory is used.lpStartupInfo is complex and specifies the main window appearance and standard device handles for the new process. We'll use two principal techniques to set the start up information. Programs 6-1, 6-2, 6-3, and others show the proper sequence of operations, which can be confusing.
lpProcInfo specifies the structure for containing the returned process, thread handles, and identification. The PROCESS_INFORMATION structure is as follows:typedef struct PROCESS_INFORMATION {HANDLE hProcess;HANDLE hThread;DWORD dwProcessId;DWORD dwThreadId;} PROCESS_INFORMATION;Why do processes and threads need handles in addition to IDs? The ID is unique to the object for its entire lifetime and in all processes, although the ID is invalid when the process or thread is destroyed and the ID may be reused. On the other hand, a given process may have several handles, each having distinct attributes, such as security access. For this reason, some process management functions require IDs, and others require handles. Furthermore, process handles are required for the general-purpose, handle-based functions. Examples include the wait functions discussed later in this chapter, which allow waiting on handles for several different object types, including processes. Just as with file handles, process and thread handles should be closed when no longer required.Note: The new process obtains environment, working directory, and other information from the CreateProcess call. Once this call is complete, any changes in the parent will not be reflected in the child process. For example, the parent might change its working directory after the CreateProcess call, but the child process working directory will not be affected unless the child changes its own working directory. The two processes are entirely independent.The UNIX/Linux and Windows process models are considerably different. First, Windows has no equivalent to the UNIX fork function, which makes a copy of the parent, including the parent's data space, heap, and stack. fork is difficult to emulate exactly in Windows, and while this may seem to be a limitation, fork is also difficult to use in a multithreaded UNIX program because there are numerous problems with creating an exact replica of a multithreaded program with exact copies of all threads and synchronization objects, especially on a multiprocessor computer. Therefore, fork, by itself, is not really appropriate in any multithreaded application.CreateProcess is, however, similar to the common UNIX sequence of successive calls to fork and execl (or one of five other exec functions). In contrast to Windows, the search directories in UNIX are determined entirely by the PATH environment variable.As previously mentioned, Windows does not maintain parent-child relationships among processes. Thus, a child process will continue to run after the creating parent process terminates. Furthermore, there are no UNIX-style process groups in Windows. There is, however, a limited form of process group that specifies all the processes to receive a console control event.Windows processes are identified both by handles and by process IDs, whereas UNIX has no process handles.Specifying the Executable Image and the Command LineEither lpApplicationName or lpCommandLine specifies the executable image name. Usually, only lpCommandLine is specified, with lpApplicationName being NULL. Nonetheless, there are detailed rules for lpApplicationName.
The new process can obtain the command line using the usual argv mechanism, or it can invoke GetCommandLine to obtain the command line as a single string.Notice that the command line is not a constant string. A program could modify its arguments, although it is advisable to make any changes in a copy of the argument string.It is not necessary to build the new process with the same UNICODE definition as that of the parent process. All combinations are possible.Inheritable HandlesFrequently, a child process requires access to an object referenced by a handle in the parent; if this handle is inheritable, the child can receive a copy of the parent's open handle. The standard input and output handles are frequently shared with the child in this way, and Program 6-1 is the first of several examples. To make a handle inheritable so that a child receives and can use a copy requires several steps.
The following code segment shows how to create an inheritable file or other handle. In this example, the security descriptor within the security attributes structure is NULL; Chapter 15 shows how to include a security descriptor.HANDLE h1, h2, h3;SECURITY_ATTRIBUTES sa ={sizeof(SECURITY_ATTRIBUTES), NULL, TRUE };...h1 = CreateFile (..., &sa, ... ); /* Inheritable. */h2 = CreateFile (..., NULL, ... ); /* Not inheritable. */h3 = CreateFile (..., &sa, ...);/* Inheritable. You can reuse sa. */A child process still needs to know the value of an inheritable handle, so the parent needs to communicate handle values to the child using an interprocess communication (IPC) mechanism or by assigning the handle to standard I/O in the STARTUPINFO structure, as in the next example (Program 6-1) and in several additional examples throughout the book. This is generally the preferred technique because it allows I/O redirection in a standard way and no changes are needed in the child program.

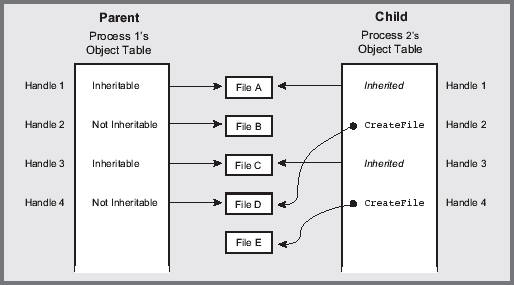

Figure 6.2 - Process Handle TablesAlternatively, nonfile handles and handles that are not used to redirect standard I/O can be converted to text and placed in a command line or in an environment variable. This approach is valid if the handle is inheritable because both parent and child processes identify the handle with the same handle value. Exercise 6-2 suggests how to demonstrate this, and a solution is presented in the Examples file.The inherited handles are distinct copies. Therefore, a parent and child might be accessing the same file using different file pointers. Furthermore, each of the two processes can and should close its own handle.Figure 6-2 shows how two processes can have distinct handle tables with two distinct handles associated with the same file or other object. Process 1 is the parent, and Process 2 is the child. The handles will have identical values in both processes if the child's handle has been inherited, as is the case with Handles 1 and 3.On the other hand, the handle values may be distinct. For example, there are two handles for File D, where Process 2 obtained a handle by calling CreateFile rather than by inheritance. Also, as is the case with Files B and E, one process may have a handle to an object while the other does not. This would be the case when the child process creates the handle. Finally, while not shown in the figure, a process can have multiple handles to refer to the same object.
