Scalable Vector Graphics - Text 1

Introduction


Before reading further, read the following articles.
Now let's proceed to learn about SVG text.


SVG Text


 The tag <text> is used to draw various types of text. The attributes used here are as in the following.
  • x & y are the x-axis & y-axis coordinates of glyphs.
  • dx & dy are the shifts along x-axis & y-axis.
  • rotate is applied to all glyphs for the transformation of text.
  • textLength used for rendering length of text.
  • lengthAdjust is used for the type of adjustment with the rendered length of text.
Glyphs are the visual representations of letters or symbols. For example, the letter “a” can be drawn using various glyphs since for the letter “a”, there are various types of visual representations available.

Let's see a few examples to understand SVG text.

Example 1
  1. <html>
  2.     <body>
  3.         <svg height="80" width="500">
  4.             <text x="10" y="40" fill="green" font-size="30px">I like</text>
  5.             <text x="100" y="40" fill="orange" font-size="40px">C# Corner</text>
  6.             <text x="290" y="40" fill="blue" font-size="30px">Community :)</text>
  7.         </svg>
  8.     </body>
  9. </html>

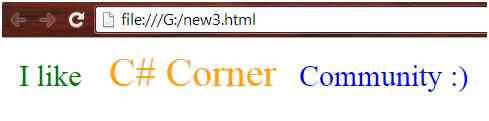

    Output

    SVG text

    Example 2


    Text Positioning


    In the context of SVG text, the position of the text is determined by x & y attributes in the <text> tag. The x attribute determines the position of the left edge (starting point) of the text whereas they attribute determines the position of the bottom edge of the text instead of the top edge. Here, the position of the text is different from those used in the triangle, circle, rectangle and so on.
    1. <html>
    2.         <body>
    3.             <svg height="80" width="500">
    4.                 <text x="10" y="40" fill="tomato" font-size="30px">How are you ?</text>
    5.                 <line x1="0" y1="40" x2="200" y2="40" stroke="blue" stroke-dasharray="10 3"/>
    6.                 <text x="220" y="60" fill="cyan" font-size="30px">Fine, Thank you !</text>
    7.                 <line x1="200" y1="60" x2="450" y2="60" stroke="green"/>
    8.             </svg>
    9.         </body>
    10. </html>

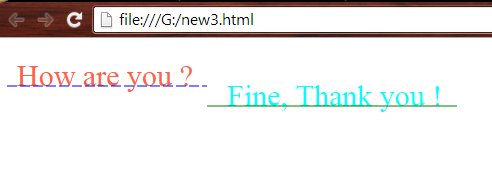

      Output


      In the output, we can see that the y position of both the text and the line is the same in both examples. That shows that the position of the text determines the bottom part of the text.

      Example 3


      Text anchoring


      The Text anchor determines what part of the text is positioned at the x-axis. The default value is the left edge of the text, but we can modify it using the three values “start”, “middle” and “end” of the “text-anchor” CSS property.
      1. <html>
      2.         <body>
      3.             <svg height="100" width="500">
      4.                 <text x="110" y="30" fill="lime" font-size="30px" text-anchor="start">Initial</text>
      5.                 <text x="110" y="50" fill="red" font-size="30px" text-anchor="middle">Moderate</text>
      6.                 <text x="110" y="70" fill="purple" font-size="30px" text-anchor="end">Finished</text>
      7.                 <line x1="110" y1="0" x2="110" y2="90" stroke="grey" stroke-dasharray="10 3"/>
      8.                 <text x="300" y="30" fill="cyan" font-size="30px" text-anchor="end">Finish</text>
      9.                 <text x="300" y="50" fill="black" font-size="30px" text-anchor="middle">Moderate</text>
      10.                 <text x="300" y="70" fill="pink" font-size="30px" text-anchor="start">Initial</text>
      11.                 <line x1="300" y1="0" x2="300" y2="90" stroke="lightgrey""/>
      12.             </svg>
      13.         </body>
      14. </html>

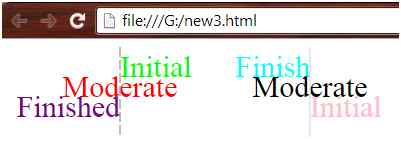

        Output

        Text anchoring

        In the output, we can see that the vertical Grey division shows the x positions of three texts. The first text starts from x=110, the second text has its middle part at x=110 and the third text ends at x=110. The next one shows the first text ends at x=300 and the second text has its middle part at x=300 and the third text starts at x=300.

        Example 4


        Multiline text


        The tag <text> can be arranged in any number of subgroups with <tspan> tags that can contain different formatting and position for multiline text.
        1. <html>
        2.         <body>
        3.             <svg height="200" width="500">
        4.                 <text x="10" y="23" fill="black" font-size="30px">Multiline Text:
        5.
        6.                     <tspan x="10" y="45" fill="tomato" font-size="20px">1st line of text.</tspan>
        7.                     <tspan x="10" y="70" fill="grey" font-size="20px">2nd line of text.</tspan>
        8.                     <tspan x="20" y="95" fill="lightblue" font-size="20px">3rd line of text.</tspan>
        9.                     <tspan x="40" y="120" fill="orange" font-size="20px">4th line of text.</tspan>
        10.                     <tspan x="80" y="145" fill="lightgreen" font-size="20px">5th line of text.</tspan>
        11.                 </text>
        12.             </svg>
        13.         </body>
        14. </html>

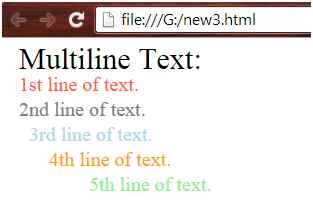

          Output

          Multiline text

          Example 5
          1. <html>
          2.         <body>
          3.             <svg height="250" width="500">
          4.                 <text x="10" y="20" fill="lime" font-size="20px" transform="rotate(30 20,40)">North-West</text>
          5.                 <text x="120" y="20" fill="orange" font-size="30px" transform="rotate(-20 300,40)">North-East</text>
          6.                 <text x="220" y="20" fill="cyan" font-size="30px" transform="rotate(130 150,30)">South-West</text>
          7.                 <text x="200" y="20" fill="tomato" font-size="20px" transform="rotate(-120 250,100)">South-East</text>
          8.             </svg>
          9.         </body>
          10. </html>

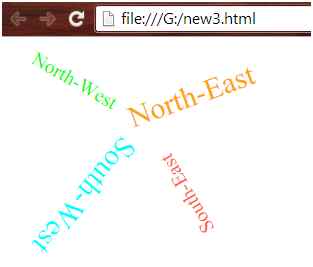

            Output

            Text transformation

            Example 6


            Text as link

            1. <html>
            2.     <body>
            3.         <svg height="250" width="500">
            4.             <a xlink:href="http://www.c-sharpcorner.com/UploadFile/9a9e6f/overview-of-scalable-vector-graphics-svg/" target="_blank">
            5.                 <text x="10" y="20" fill="blue" font-size="20px">SVG Overview</text>
            6.             </a>
            7.         </svg>
            8.      </body>
            9. </html>
              Output



              Example 7


              Vertical Text


               Vertical Text can be done using the “writing-mode” CSS property to be, in other words, top to bottom.

              It can also be done by the transformation of text.
              1. <html>
              2.     <body>
              3.         <svg height="300" width="550">
              4.             <text x="10" y="20" fill="green" font-size="20px"style="writing-mode: tb;">
              5.                CSharp
              6.             </text>
              7.             <text x="40" y="10" fill="cyan" font-size="20px"style="writing-mode: tb; glyph-orientation-vertical: 0;">
              8.                Corner
              9.             </text>
              10.             <text x="80" y="10" fill="lightgreen" font-size="30px"style="writing-mode: tb; glyph-orientation-vertical: 90;">
              11.                Csharpcorner
              12.             </text>
              13.             <text x="120" y="10" fill="blue" font-size="20px"style="writing-mode: tb; glyph-orientation-vertical: 180;">
              14.                Csharp corner
              15.             </text>
              16.             <text x="150" y="10" fill="grey" font-size="30px"style="writing-mode: tb; glyph-orientation-vertical: 270;">
              17.                Csharp corner
              18.             </text>
              19.             <text x="180" y="10" fill="lime" font-size="20px"style="writing-mode: tb; glyph-orientation-vertical: 360;">
              20.                Csharp corner
              21.             </text>
              22.         </svg>
              23.     </body>
              24. </html>

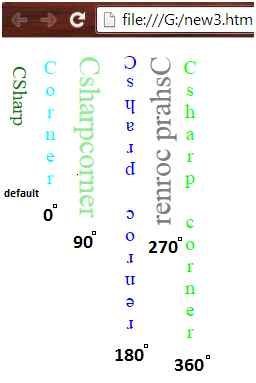

                Output

                Vertical Text

                Example 8


                Text with the letter and word spacing


                It can be done using the CSS properties “letter-spacing” and “word-spacing”.
                1. <html>
                2.     <body>
                3.         <svg height="300" width="500">
                4.             <text x="20" y="20" font-size="30px" >Normal Text</text>
                5.             <text x="20" y="50" fill="orange" font-size="20px" style="letter-spacing:2;">Text with letter spacing(2)</text>
                6.             <text x="20" y="75" fill="lightgreen" font-size="20px" style="letter-spacing:4;">Text with letter spacing(4)</text>
                7.             <text x="20" y="100" fill="blue" font-size="20px" style="letter-spacing:6;">Text with letter spacing(6)</text>
                8.             <text x="20" y="150" font-size="30px" >Normal Text</text>
                9.             <text x="20" y="175" fill="red" font-size="20px" style="word-spacing:2;">Text with word spacing(2)</text>
                10.             <text x="20" y="200" fill="cyan" font-size="20px" style="word-spacing:4;">Text with word spacing(4)</text>
                11.             <text x="20" y="225" fill="grey" font-size="20px" style="word-spacing:6;">Text with word spacing(6)</text>
                12.         </svg>
                13.     </body>
                14. </html>

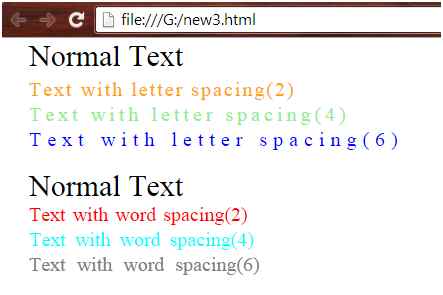

                  Output

                  word spacing

                  Example 10


                  Text direction


                  The direction of the text can be set using the “direction” CSS property that includes the two values “ltr” (left to right) and “rtl” (right to left). There is also the need to set the Unicode-bidi CSS property to bidi-override in case of “rtl”.
                  1. <html>
                  2.         <body>
                  3.             <svg height="300" width="500">
                  4.                 <text x="10" y="40" fill="blue" font-size="30px" style="direction: ltr; unicode-bidi: bidi-override;">
                  5.     Left to right
                  6.                 </text>
                  7.                 <text x="160" y="80" fill="red" font-size="30px" style="direction: rtl; unicode-bidi: bidi-override;">
                  8.     Right to left
                  9.                 </text>
                  10.             </svg>
                  11.         </body>
                  12. </html>
                    Output

                    Text direction

                    Example 9


                    Text length and length adjust


                    The “textLength” something sets the length of the text and then fits it to the specified length by adjusting the space between the characters and the size of the glyphs. The “lengthAdjust” something specifies when both letter spacing and glyphs size need to be adjusted.
                    1. <html>
                    2.         <body>
                    3.             <svg height="300" width="550">
                    4.                 <text x="5" y="30" fill="lime" font-size="30px" textLength="150">This is the length of text</text>
                    5.                 <text x="5" y="60" fill="orange" font-size="30px" textLength="200">This is the length of text</text>
                    6.                 <text x="5" y="90" fill="blue" font-size="30px" textLength="250">This is the length of text</text>
                    7.                 <text x="5" y="120" fill="grey" font-size="30px" textLength="200" lengthAdjust="spacingAndGlyphs">This is the length of text</text>
                    8.                 <text x="5" y="160" fill="red" font-size="40px" textLength="250" lengthAdjust="spacingAndGlyphs">This is the length of text</text>
                    9.             </svg>
                    10.         </body>
                    11. </html>

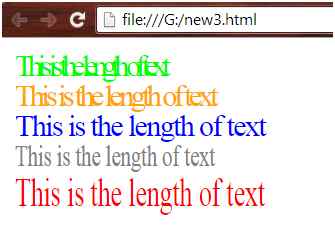

                      Output

                      Output

                      I want to read more.


                      Summary


                      In this article, we learned about Scalable Vector Graphics - Text 1.

                      Thank you, keep learning and sharing.
