SharePoint Workflow: Create A SubFolder In Site Collection Documents Or Shared Document

SharePoint Site Setting

Step 1: Create SharePoint Custom List - ProjectFolder, FolderList.

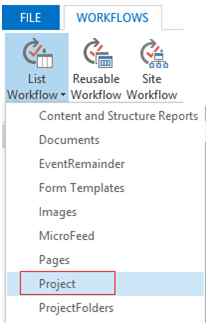

Step 2: Create SPD List Workflow.

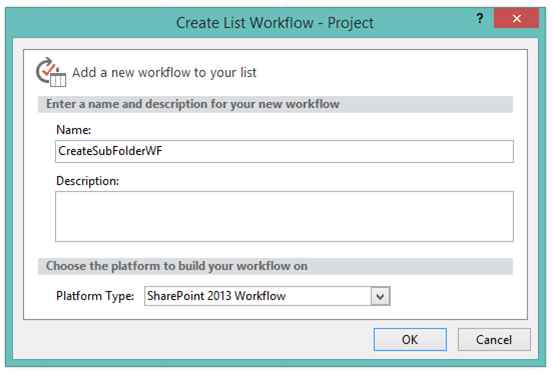

Create SPD List Workflow

Workflow

Create Workflow Variable

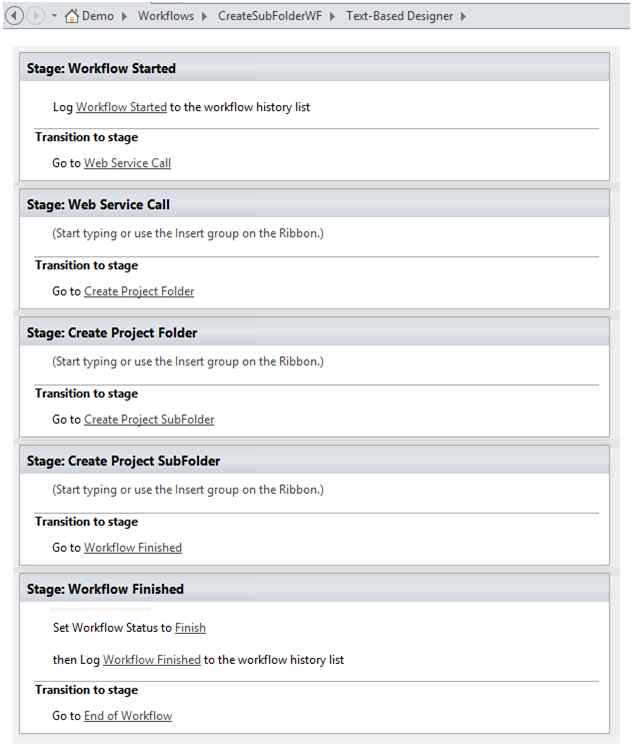

Step 3: Create Basic Workflow Pattern.

Create Basic Workflow Pattern

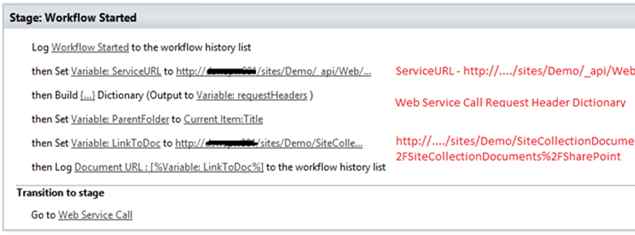

Step 4: Create Workflow Variable & assign some default values to them.

  • ServiceURL - SharePoint List URL where we defined Sub Folder Names.
  • RequestHeader - HTTP Header for web service call.
  • LinkToDoc - SharePoint Link where our Sub Folder gets added/saved.

LinkToDoc

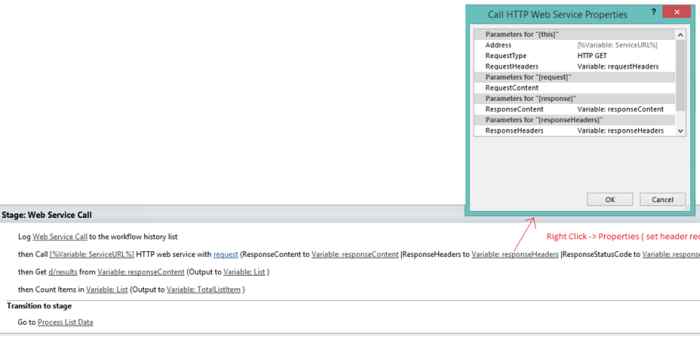

Step 5:
Web Service Call.

  • In order to create a sub folder, we first need to fetch List data containing folder names using the following URL "http://....../sites/Demo/_api/Web/Lists/GetByTitle('ProjectFolders')/Items ".

  • Firstly, add ' call HTTP Web Service ' method to have web service call.

  • Set all required parameter for this web service call such as requestHeader, responseContent, responseHeader

responseHeader

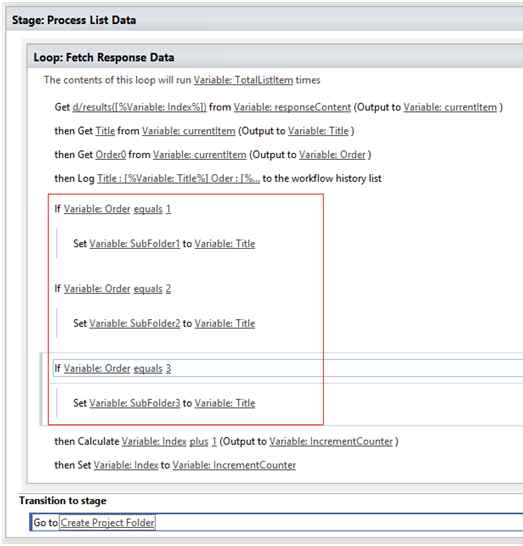

Step 6:

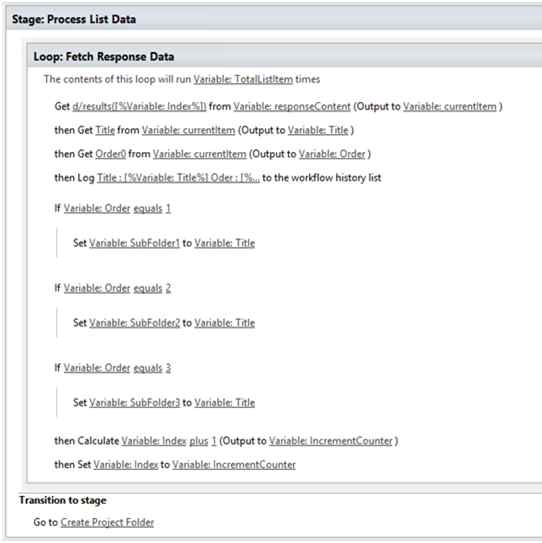

As per the order of the folder, set workflow variable values. Go to the next stage once variable initialization completes.

variable initialization

Step 7 Create Project Folder.

We first need to create a root folder to save sub folder, so at this stage we are going to create a parent folder.

To create Folder insert action named "Create Item".

Click 'this list", then Site Collection Documents and Add New Field. After that "Set this field" as Content Type ID and Folder for "To this value"

Content Type ID

In order to set Parent Folder Path , we need to modify the following field: "Path and Name".

Path and Name

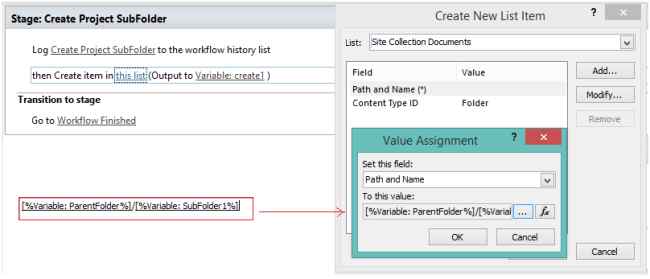

Step 8: Create Sub Folder.

To create Folder insert action "Create Item".

Click "this list", then under Site Collection Documents - Add New Field, then Content Type ID = Folder
Folder Path play an important role here: ParentFolder/SubFolder

Site Collection Documents

Step 9: Workflow Finished.

We need to update List field i.e SubFolder Location as in the following screenshot:

Location

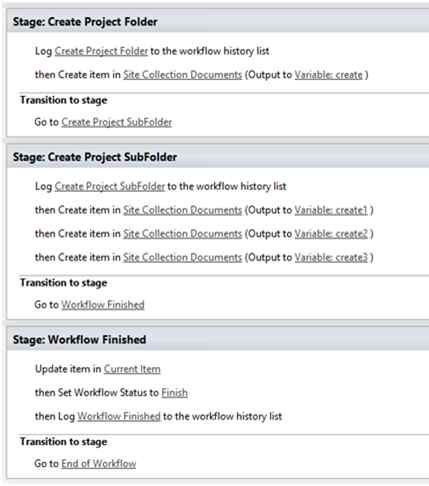

Workflow

Workflow stage

Workflow

Web Service Call

Output:



Output Continue ..


Workflow Histroy

 Thank you !!! Please mention your queries if you have any.
