Provider Hosted MVC App With AngularJS In SharePoint - Part 3

This article is continuation of Part-1 & Part-2.

Let's start with Provider Hosted MVC App with AngularJS - Part 3. In this part we are going to create dynamic TileView using CSS and AngularJS.

SharePoint HostWeb List Structure

The following is a list structure which we are referencing for our application.

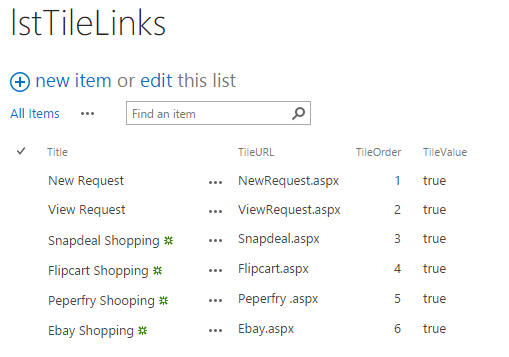

Figure 1: App

We are going to create the following UI Design and final output format.

UI Change

In top navigation bar new option added to show tileview i.e. TileView.

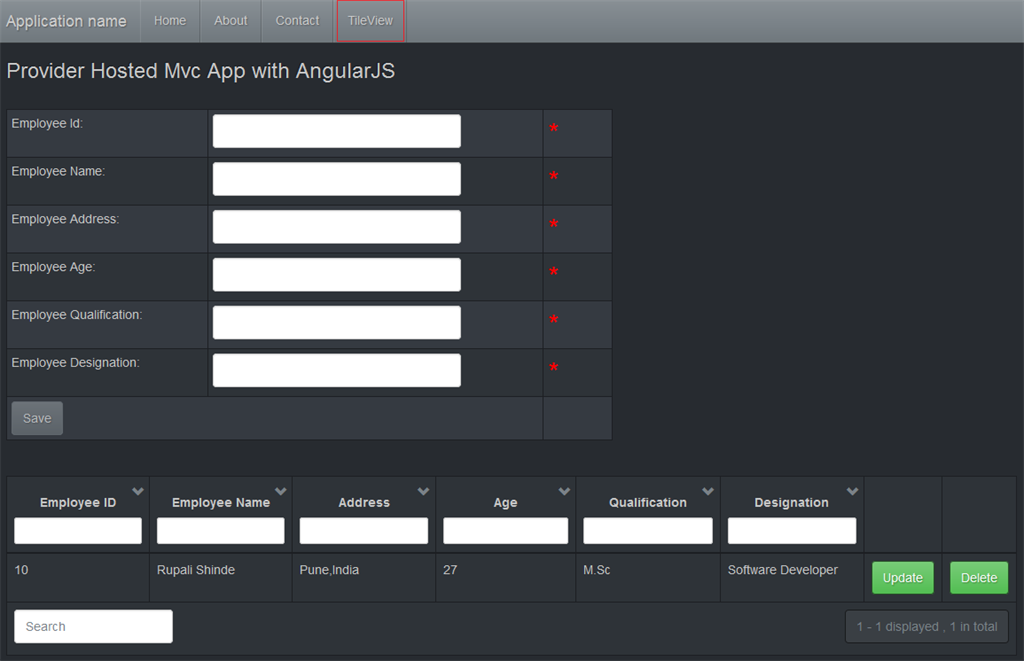

Figure 2: Tile

Output

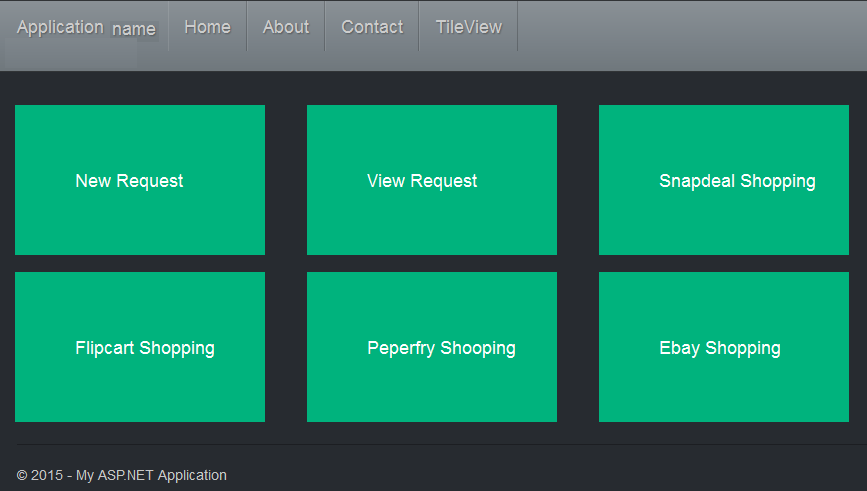

Figure 3: output

Solution Changes in term of new controller, view , javascript and CSS files.

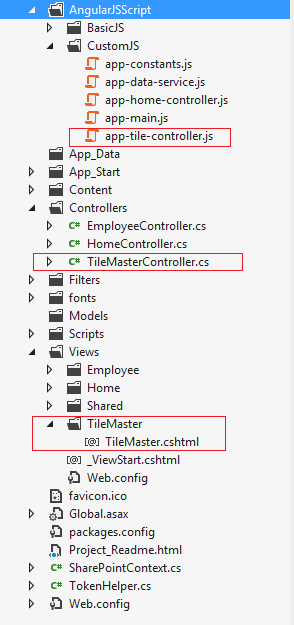

Figure 4: Solution

Let's start with service layer coding to fetch list data.

Step 1: Session Management in AngularJS

When we navigate from one page to another page, we need ' hostweburl ' & ' appweburl ' URL values to access SharePoint site data, so we need to save those values in session to access on another page.

There are two ways to save data in session - sessionStorage & localStorage.
  1. var hostweburl;
  2. var appweburl;
  3.
  4. //The SharePoint App where the App is actualy installed
  5. hostweburl = decodeURIComponent(QueryStringParameter('SPHostUrl'));
  6.
  7. //The App web where the component to be accessed by the app are deployed
  8. appweburl = decodeURIComponent(QueryStringParameter('SPAppWebUrl'));
  9.
  10. var Sessionhostweburl = sessionStorage.getItem("hostweburl");
  11. var Sessionappweburl = sessionStorage.getItem("appweburl");
  12.
  13. if (Sessionhostweburl == null || Sessionappweburl == null)
  14. {
  15.     sessionStorage.setItem("hostweburl", hostweburl);
  16.     sessionStorage.setItem("appweburl", appweburl);
  17. }
  18.
  19. if (hostweburl == null || appweburl == null || hostweburl == 'undefined' || appweburl == 'undefined')
  20. {
  21.     hostweburl = sessionStorage.getItem("hostweburl");
  22.     appweburl = sessionStorage.getItem("appweburl");
  23. }
  24.
  25. console.log("hostweburl : " + hostweburl);
  26. console.log("appweburl : " + appweburl);

app-data-service.js

New service layer method to get SharePoint List data in order to create TileView.

  1. this.getTileData = function()
  2. {
  3.
  4.     var TileArray = [];
  5.
  6.     var deferred = $q.defer();
  7.
  8.     // Load 15hives js files and continue to the successHandler
  9.     $.getScript(scriptbase + "SP.Runtime.js",
  10.
  11.     function()
  12.     {
  13.         $.getScript(scriptbase + "SP.js",
  14.
  15.         function()
  16.         {
  17.             $.getScript(scriptbase + "SP.RequestExecutor.js",
  18.
  19.             function()
  20.             {
  21.
  22.                 //Represents the context for objects and operations.
  23.                 var context = new SP.ClientContext(appweburl);
  24.
  25.                 //Access host web from app using JavaScript CSOM
  26.                 var factory = new SP.ProxyWebRequestExecutorFactory(appweburl);
  27.                 context.set_webRequestExecutorFactory(factory);
  28.
  29.                 var appContextSite = new SP.AppContextSite(context, hostweburl);
  30.                 var web = appContextSite.get_web();
  31.                 context.load(web);
  32.
  33.                 //Access HostWeb List
  34.                 var list = web.get_lists().getByTitle('lstTileLinks');
  35.
  36.                 var camlQuery = SP.CamlQuery.createAllItemsQuery();
  37.                 this.listItems = list.getItems(camlQuery);
  38.                 context.load(this.listItems);
  39.
  40.                 context.executeQueryAsync(
  41.                 Function.createDelegate(this, function()
  42.                 {
  43.
  44.                     var ListEnumerator = this.listItems.getEnumerator();
  45.
  46.                     while (ListEnumerator.moveNext())
  47.                     {
  48.
  49.                         var currentItem = ListEnumerator.get_current();
  50.                         TileArray.push({
  51.                             ID: currentItem.get_item('ID'),
  52.                             Title: currentItem.get_item('Title'),
  53.                             TileURL: currentItem.get_item('TileURL')
  54.                         });
  55.                     }
  56.
  57.                     console.log(TileArray);
  58.                     deferred.resolve(TileArray);
  59.                 }),
  60.                 Function.createDelegate(this, function(sender, args) {
  61.                     deferred.reject('Request failed. ' + args.get_message());
  62.                     console.log("Error : " + args.get_stackTrace());
  63.                 }));
  64.             });
  65.         });
  66.     });
  67.
  68.     return deferred.promise;
  69. }; // Get

app-tile-controller.js

New controller added into solution for TileView creation.
  1. (function()
  2. {
  3.
  4.     console.log('app-tile-controller.js loaded ..');
  5.     'use strict'
  6.
  7.     angular.module(window.AngularApp_constants.architecture.modules.MainApp.moduleKey)
  8.         .controller('TileController', HomeController)
  9.
  10.     HomeController.$inject = ['$scope', '$location', 'app-data-service'];
  11.
  12.     function HomeController($scope, $location, AngularDataService)
  13.     {
  14.
  15.         /********* Fill Tile *********/
  16.         $scope.TileMaster = [];
  17.
  18.         LoadTileData();
  19.
  20.         function LoadTileData()
  21.         {
  22.
  23.             console.log("LoadTileData called");
  24.
  25.             var promiseGet = AngularDataService.getTileData();
  26.             promiseGet.then(function(resp)
  27.             {
  28.                 $scope.TileMaster = resp;
  29.             },
  30.             function(err)
  31.             {
  32.                 $scope.Message = "Error " + err.status;
  33.                 console.log($scope.Message);
  34.             });
  35.         }
  36.     }
  37.
  38. })();

TileMasterController

New controller added into solution for tile creation.
  1. public class TileMasterController: Controller
  2. {
  3.     // GET: TileMaster
  4.     public ActionResult TileMaster()
  5.     {
  6.         return View();
  7.     }
  8. }

TileMaster.cshtml

  1. @{
  2. ViewBag.Title = "Home Page";
  3. }
  4. <!-- Javascript from hives Layout folder -->
  5. <script type="text/javascript" src="/_layouts/15/sp.runtime.js"></script>
  6. <script type="text/javascript" src="/_layouts/15/sp.js"></script>
  7. <script type="text/ecmascript" src="/_layouts/SP.Core.js"></script>
  8. <script type="text/javascript" src="https://ajax.aspnetcdn.com/ajax/4.0/1/MicrosoftAjax.js"></script>
  9. <!-- Basic JS Files -->
  10. <script src="~/AngularJSScript/BasicJS/angular.min.js"></script>
  11. <script src="~/AngularJSScript/BasicJS/trNgGrid.js"></script>
  12. <script src="~/AngularJSScript/BasicJS/angular-messages.js"></script>
  13. <!-- Custom JS Files -->
  14. <script src="~/AngularJSScript/CustomJS/app-constants.js"></script>
  15. <script src="~/AngularJSScript/CustomJS/app-main.js"></script>
  16. <script src="~/AngularJSScript/CustomJS/app-data-service.js"></script>
  17. <script src="~/AngularJSScript/CustomJS/app-tile-controller.js"></script>
  18. <link href="~/Content/TileBranding.css" rel="stylesheet" />
  19. <div ng-app="AngularApp">
  20.     <div ng-controller="TileController">
  21.         <br />
  22.         <br />
  23.         <ul>
  24.             <li ng-repeat="Tile in TileMaster">
  25.                 <div class="ActiveTile">
  26.                     <div class="TileHeading">
  27.                         <a href="{{ Tile.TileURL }}" target="_blank">{{ Tile.Title }} </a>
  28.                     </div>
  29.                 </div>
  30.             </li>
  31.         </ul>
  32.     </div>
  33. </div>

TileBranding.css

  1. .ActiveTile {
  2.     display: inline-block;
  3.     position: relative;
  4.     width: 250px;
  5.     height: 150px;
  6.     /*background: #ccffcc;*/
  7.     background-color: rgb(0, 179, 125);
  8.     z-index: 0;
  9.     margin: 15px 40px 2px -2px;
  10.     transition: all .15s ease-in-out;
  11. }
  12.
  13.     .ActiveTile:hover {
  14.         /*background: #9CC;*/
  15.         background-color: #00CC66;
  16.         z-index: 100;
  17.         /*transform: scale(1.2,1.2);*/
  18.         box-shadow: 0 5px 10px 0 rgba(0,0,0,.2);
  19.     }
  20.
  21. .TileHeading {
  22.     color: powderblue;
  23.     font-size:20px;
  24.     margin: 63px 10px 10px 60px;
  25. }
  26. /************************************/
  27.
  28. ul, li {
  29.     list-style: none;
  30.     margin: 0;
  31.     padding: 0;
  32.     display: inline;
  33. }
  34.
  35. a {
  36.     display: block;
  37.     width: 100%;
  38.     height: 100%;
  39.     text-decoration: none !important;
  40.     color: white;
  41.     font-size: 18px;
  42. }

I hope you all liked this article as you liked the Part 1 and Part 2 of the series..

Thank you!
