What is ViewData?

Introduction

This article demonstrates an interesting and very useful concept in ASP.NET MVC.

Question: What is ViewData?

In simple terms "ViewBag is a data holder that enables definition of a key-value pair and that holds the data that can be passed from controller to view".

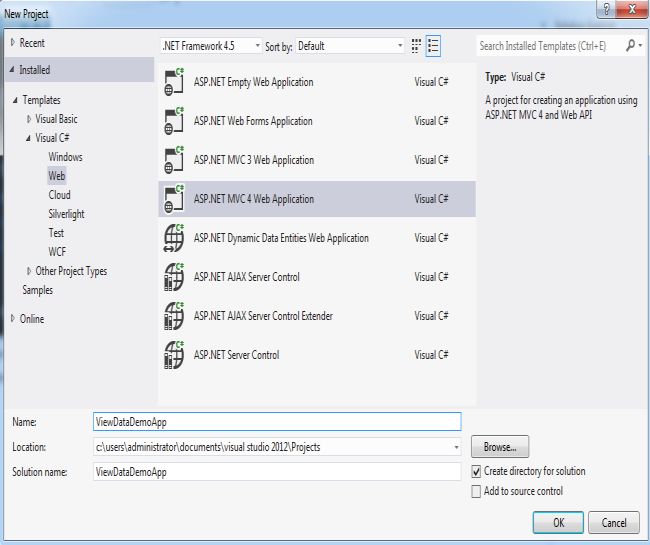

Step 1: Create a new ASP.NET MVC application

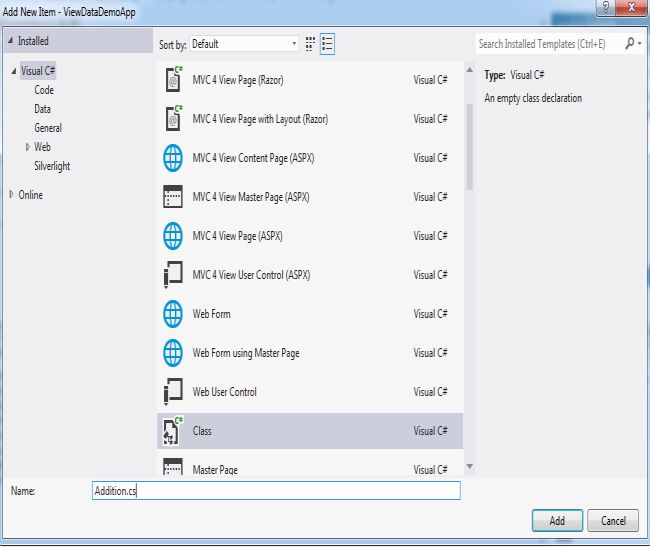

Step 2: Adding New Model



  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel.DataAnnotations;
  4. using System.Linq;
  5. using System.Web;
  6. namespace ViewDataDemoApp.Models
  7. {
  8.     public class Addition
  9.     {
  10.         [Required(ErrorMessage = "Please Enter FirstNumber")]
  11.         public int FirstNumber { getset; }
  12.         [Required(ErrorMessage = "Please Enter SecondNumber")]
  13.         public int SecondNumber
  14.         {
  15.             get;
  16.             set;
  17.         }
  18.     }
  19. }

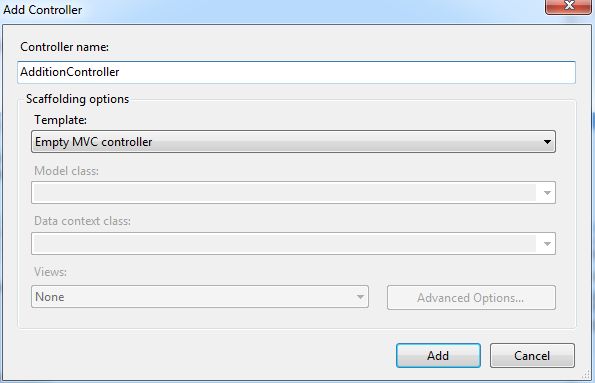

Step 3: Adding New Controller



  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using ViewDataDemoApp.Models;
  7. namespace ViewDataDemoApp.Controllers
  8. {
  9.     public class AdditionController : Controller
  10.     {
  11.         //// GET: /Addition/public ActionResult Index(Addition addition)
  12.         ViewData["AddMessage"] = "Addition Result is: ";
  13.         ViewData["Result"] = addition.FirstNumber + addition.SecondNumber;
  14.         if ((int)ViewData["Result"] < 1)
  15.         {
  16.            ViewData["AddMessage"] = string.Empty;
  17.            ViewData["Result"] = string.Empty;
  18.         }
  19.         return View();
  20.     }
  21.   }

Step 4: Adding New View


  1. @model ViewDataDemoApp.Models.Addition@
  2. { ViewBag.Title = "Addition Operation Using ViewData"; }<h2>
  3.     Addition Operation Using ViewData</h2>
  4. <br />
  5. @using (Html.BeginForm()) {@Html.ValidationSummary(true)<fieldset>
  6.     <legend>Addition</legend>
  7.     <div class="editor-label">@Html.LabelFor(model => model.FirstNumber)</div>
  8.     <div class="editor-field">@Html.EditorFor(model => model.FirstNumber)@Html.ValidationMessageFor(model => model.FirstNumber)</div>
  9.     <div class="editor-label">@Html.LabelFor(model => model.SecondNumber)</div>
  10.     <div class="editor-field">@Html.EditorFor(model => model.SecondNumber)@Html.ValidationMessageFor(model => model.SecondNumber)</div>
  11.     <p>@ViewData["AddMessage"] @ViewData["Result"]</p>
  12.     <br />
  13.     <p>
  14.         <input type="submit" value="Add" /></p>
  15.     </fieldset> }<div>@Html.ActionLink("Back to List""Index")
  16.     </div>
  17. @section Scripts {@Scripts.Render("~/bundles/jqueryval")
  18. }

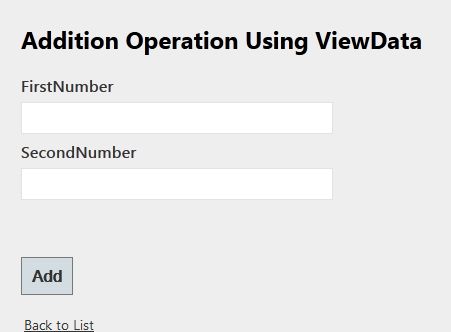

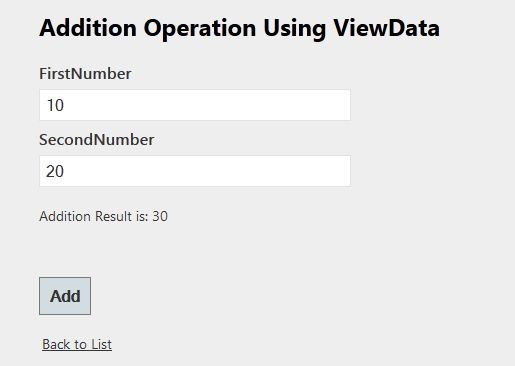

Step 5: The output for the application looks as in the following
