<%@ Import Namespace="Microsoft.SharePoint" %>
<%@ Register TagPrefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages"
Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>
<%@ Control Language="C#" AutoEventWireup="true" CodeBehind="VisualWebPart1.ascx.cs"
Inherits="ReorderFieldsApp.VisualWebPart1.VisualWebPart1" %>
<div>
<table style="font-family: Verdana; text-align: center;">
<tr>
<td colspan="2">
<asp:label id="Label1" runat="server" text="ReOrder List Fields - SharePoint 2010 via Visual Studio 2012"
font-bold="true" forecolor="Maroon" font-size="Large"></asp:label>
</td>
</tr>
<tr>
<td>
<asp:label id="Label2" runat="server" text="Please Enter First Field Order:"></asp:label>
</td>
<td>
<asp:textbox id="TextBox1" runat="server"></asp:textbox>
</td>
</tr>
<tr>
<td>
<asp:label id="Label3" runat="server" text="Please Enter Second Field Order:"></asp:label>
</td>
<td>
<asp:textbox id="TextBox2" runat="server"></asp:textbox>
</td>
</tr>
<tr>
<td>
<asp:label id="Label5" runat="server" text="Please Enter Third Field Order:"></asp:label>
</td>
<td>
<asp:textbox id="TextBox3" runat="server"></asp:textbox>
</td>
</tr>
<tr>
<td colspan="2">
<asp:button id="Button1" runat="server" text="ReOrder Fields" forecolor="Orange"
font-bold="true" backcolor="Black" onclick="Button1_Click" width="116px" />
</td>
</tr>
<tr>
<td colspan="2">
<asp:label id="Label4" runat="server" font-bold="true"></asp:label>
</td>
</tr>
</table>
</div>
Step 5: The complete code of visualwebpart1usercontrol.ascx.cs looks like this:
using Microsoft.SharePoint;
using System;
using System.ComponentModel;
using System.Web.UI.WebControls.WebParts;namespace ReorderFieldsApp.VisualWebPart1
{
[ToolboxItemAttribute(false)]
public partial class VisualWebPart1 : WebPart
{
// Uncomment the following SecurityPermission attribute only when doing Performance Profiling using
// the Instrumentation method, and then remove the SecurityPermission attribute when the code is ready
// for production. Because the SecurityPermission attribute bypasses the security check for callers of
// your constructor, it's not recommended for production purposes.
// [System.Security.Permissions.SecurityPermission(System.Security.Permissions.SecurityAction.Assert, UnmanagedCode = true)]
public VisualWebPart1()
{
}
protected override void OnInit(EventArgs e)
{base.OnInit(e);InitializeControl();
}
protected void Page_Load(object sender, EventArgs e)
{
TextBox1.Focus();
}
protected void Button1_Click(object sender, EventArgs e)
{
try
{
if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text) || string.IsNullOrEmpty(TextBox3.Text))
{
Label4.Text = "Please Enter Some Values";
Label4.ForeColor = System.Drawing.Color.Red;
}
else{SPWeb web = SPContext.Current.Web;
SPContentType contentType = web.Lists["Employee"].ContentTypes["Item"];
SPFieldLinkCollection fields = contentType.FieldLinks;
fields.Reorder(new[]
{
TextBox1.Text, TextBox2.Text, TextBox3.Text
}
);
contentType.Update();
Label4.Text = "Employee Fields ReOrdered";
Label4.ForeColor = System.Drawing.Color.Green;
TextBox1.Text = string.Empty;
TextBox2.Text = string.Empty;
TextBox3.Text = string.Empty;
}
}
catch (SPException ex)
{
Label4.Text = ex.Message;
}
}
}
}
Step 6: Deploy the solution file and add the new webpart to a SharePoint site.

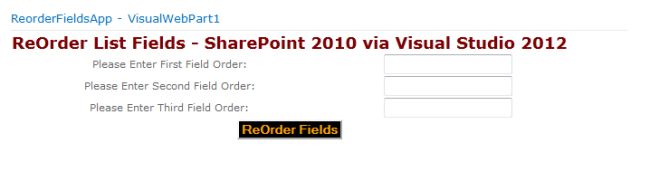

Step 7: The output of the application looks like this:
![Output-Sharepoint2010.jpg]()

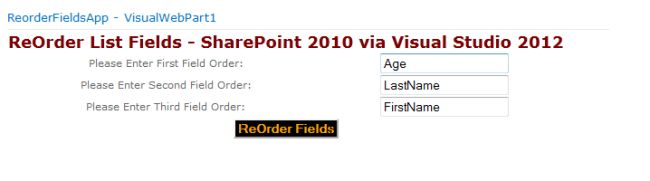

Step 8: Data entering output of the application looks like this:
![data-entering-output-sharepoint2010.jpg]()

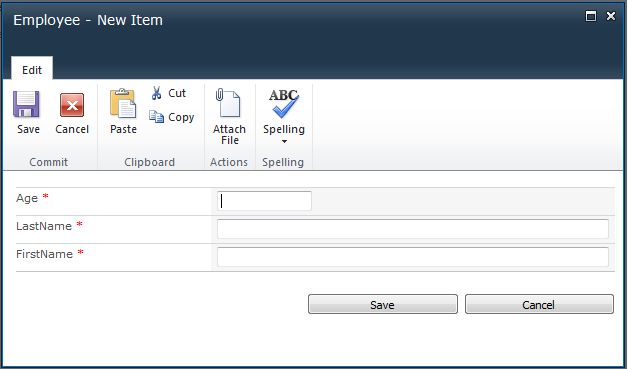

Step 9: Rearranged fields output of the application looks like this:
![Rearranged-fields-output-sharepoint2010.jpg]()
I hope this article is useful for you.
