How to Set Image in a Image View on Click in Android Studio

Introduction


In this article, you will learn how to set an image in an Image View on a click.

Step 1

First I used many Image Views and ScrollViews for the sliding activity. The first Image View sets the image on a button click and the others contain the images to be set. I saved the images in the drawable folder by copy and paste.

Step 2

Open the layout file activity_main.xml and write this:
  1. <?xml version="1.0" encoding="utf-8" ?>
  2.
  3. <LinearLayout
  4.         android:layout_width="fill_parent"
  5.         android:layout_height="fill_parent"
  6.         xmlns:android="http://schemas.android.com/apk/res/android"
  7.         android:orientation="vertical"
  8.         android:background="#80000000">
  9.
  10.   <ImageView
  11.           android:layout_width="wrap_content"
  12.           android:layout_height="wrap_content"
  13.           android:id="@+id/imageView1"
  14.           android:layout_gravity="center"/>
  15.   <Button
  16.           android:layout_width="wrap_content"
  17.           android:layout_height="wrap_content"
  18.           android:text="New Button"
  19.           android:id="@+id/button" android:layout_gravity="center"
  20.           android:visibility="invisible"/>
  21.
  22.   <HorizontalScrollView
  23.           android:layout_width="200dp"
  24.           android:layout_height="wrap_content"
  25.           android:id="@+id/scrollView"
  26.           android:layout_gravity="center">
  27.
  28.     <LinearLayout
  29.             android:layout_width="fill_parent"
  30.             android:layout_height="wrap_content"
  31.             android:orientation="horizontal">
  32.
  33.       <ImageView
  34.               android:src="@drawable/image2"
  35.               android:layout_width="125dp"
  36.               android:layout_height="fill_parent"
  37.               android:id="@+id/imageView2"
  38.               android:padding="15dp"/>
  39.
  40.       <ImageView
  41.               android:src="@drawable/image3"
  42.               android:layout_width="125dp"
  43.               android:layout_height="125dp"
  44.               android:id="@+id/imageView3"
  45.               android:layout_gravity="center"
  46.               android:padding="15dp"/>
  47.
  48.       <ImageView
  49.               android:src="@drawable/images4"
  50.               android:layout_width="125dp"
  51.               android:layout_height="125dp"
  52.               android:id="@+id/imageView4"
  53.               android:layout_gravity="center"
  54.               android:padding="15dp"/>
  55.
  56.       <ImageView
  57.               android:src="@drawable/image5"
  58.               android:layout_width="125dp"
  59.               android:layout_height="125dp"
  60.               android:id="@+id/imageView5"
  61.               android:layout_gravity="center"
  62.               android:padding="15dp"/>
  63.
  64.       <ImageView
  65.               android:src="@drawable/image6"
  66.               android:layout_width="125dp"
  67.               android:layout_height="125dp"
  68.               android:id="@+id/imageView6"
  69.               android:layout_gravity="center"
  70.               android:padding="15dp"/>
  71.
  72.       <ImageView
  73.               android:src="@drawable/image7"
  74.               android:layout_width="125dp"
  75.               android:layout_height="125dp"
  76.               android:id="@+id/imageView7"
  77.               android:layout_gravity="center"
  78.               android:padding="15dp"/>
  79.
  80.     </LinearLayout>
  81.
  82.   </HorizontalScrollView>
  83.   <TextView
  84.           android:layout_width="fill_parent"
  85.           android:layout_height="wrap_content"
  86.           android:textAppearance="?android:attr/textAppearanceMedium"
  87.           android:text="Click on the Image"
  88.           android:id="@+id/textView"
  89.           android:layout_marginTop="50dp"
  90.          android:textColor="#45454545"
  91.           android:layout_marginLeft="120dp"/>
  92.
  93. </LinearLayout>
Open the Java class file Main_Activity.java and write this:
  1. package com.wallpaer;
  2. import android.graphics.Bitmap;
  3. import android.graphics.BitmapFactory;
  4. import android.os.Bundle;
  5. import android.app.Activity;
  6. import android.view.View;
  7. import android.widget.Button;
  8. import android.widget.ImageView;
  9. import java.io.IOException;
  10. import java.io.InputStream;
  11.
  12. public class MainActivity extends Activity implements View.OnClickListener{
  13.     ImageView imageView1;
  14.     Button button;
  15.      int tophone;
  16.     @Override
  17.     protected void onCreate(Bundle savedInstanceState) {
  18.         super.onCreate(savedInstanceState);
  19.         setContentView(R.layout.activity_main);
  20.         imageView1=(ImageView)findViewById(R.id.imageView1);
  21.         tophone=R.drawable.ic_launcher;
  22.         ImageView imageView2=(ImageView)findViewById(R.id.imageView2);
  23.         ImageView imageView3=(ImageView)findViewById(R.id.imageView3);
  24.         ImageView imageView4=(ImageView)findViewById(R.id.imageView4);
  25.         ImageView imageView5=(ImageView)findViewById(R.id.imageView5);
  26.         ImageView imageView6=(ImageView)findViewById(R.id.imageView6);
  27.         ImageView imageView7=(ImageView)findViewById(R.id.imageView7);
  28.         button=(Button)findViewById(R.id.button);
  29.         imageView2.setOnClickListener(this);
  30.         imageView3.setOnClickListener(this);
  31.         imageView4.setOnClickListener(this);

            imageView5.setOnClickListener(
    this);imageView2.setOnClickListener(this);
  32.         imageView6.setOnClickListener(this);
  33.         imageView7.setOnClickListener(this);
  34.         button.setOnClickListener(this);
  35.        }
  36.       public void onClick(View v)
  37.       {
  38.         switch(v.getId())
  39.         {
  40.             case R.id.imageView2:
  41.                 imageView1.setImageResource(R.drawable.image2);
  42.                 tophone=R.drawable.image3;
  43.                 break;
  44.             case R.id.imageView3:
  45.                 imageView1.setImageResource(R.drawable.image3);
  46.                 tophone=R.drawable.image5;
  47.                 break;
  48.             case R.id.imageView4:
  49.                 imageView1.setImageResource(R.drawable.images4);
  50.                 tophone=R.drawable.ic_launcher;
  51.                 break;
  52.             case R.id.imageView5:
  53.                 imageView1.setImageResource(R.drawable.image2);
  54.                 tophone=R.drawable.ic_launcher;
  55.                 break;
  56.             case R.id.imageView6:
  57.                 imageView1.setImageResource(R.drawable.image6);
  58.                 tophone=R.drawable.ic_launcher;
  59.                 break;
  60.             case R.id.imageView7:
  61.                 imageView1.setImageResource(R.drawable.image7);
  62.                 tophone=R.drawable.ic_launcher;
  63.                 break;
  64.             case R.id.button:
  65.                 InputStream a=getResources().openRawResource(tophone);
  66.                 Bitmap whatever= BitmapFactory.decodeStream(a);
  67.                try{
  68.                    getApplicationContext().setWallpaper(whatever);
  69.                }
  70.                catch(IOException e){
  71.                    e.printStackTrace();
  72.                }
  73.                    break;
  74.         }
  75.     }
  76. }
Step 3

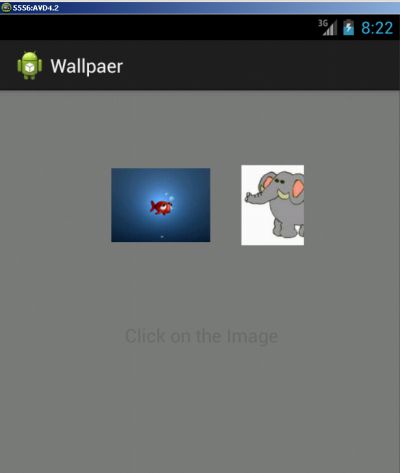

First, the User Interface will appear like this:


Step 4

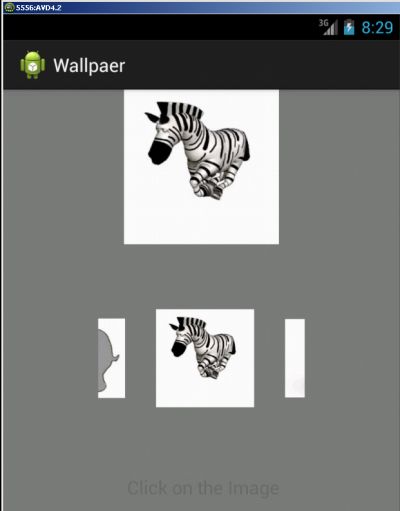

On the click, the image will be set on Image View and look like this:


Step 5

You can change the image by sliding these images like this:



Summary


In this article, we learned about How to Set Image in an Image View on Click in Android Studio.
