Draw ASP.Net Chart Using HTML5 and jQuery



In my previous article Draw ASP.NET Bar Chart Using HTML5 and jQuery I explained how to create a simple Web Bar Chart using HTML5 and jQuery. This article shows how to draw our own Chart's like.

  1. Line Chart
  2. Bar Chart
  3. Line & Bar Chart
  4. Pie Chart
  5. Donut Chart
  6. Bubble Chart
In the Source Code Zip file you can find both Visual Studio 2010 and Visual Studio 2013 solutions. You can use any solutions depending on your Visual Studio Versions.

My Bar Chart Features

All this following features will be used for all chart types we can see one by one in code part.


Chart Source Data

The plot data from a database / Data Table / List / XML file or any source depending on your requirements. The only thing you need to do is get the data from your source and bind the result to a Dropdown List. (With the value and text. Here the value will be an integer for plotting the value and the text will be to be displayed in the label.)

Chart Number of Category

Here I have limited the Chart Category display from a minimum of 1 to a maximum of 12. This means here dynamically we can load the plots category depending on the data source. But limited, since the display plots value is within 12 plots. (But the user can redesign the code easily depending on requirements.)

Chart Title Text

The user can add their own Chart Title and dynamically change the titles if required. Here in my example I will draw the Title TextBox text at the bottom of the Bar Chart. (The user can redesign and customize this depending on requirements.)

Chart Water Mark Text

In some cases we need to add our company name as a Watermark to our Bar Chart. Here in my example I will draw the Water Mark TextBox text at the center of the Bar Chart. (The user can redesign and customize this depending on requirements.)

Chart Company LOGO

The user can add their own company logo to the Chart. (Here for the sample I have added my own image as a log at the top-right corner. (The user can redesign and customize this depending on your requirements if needed.)

Chart Alert Image

Chart Alert Image Display: You can see from the article the first Image has Labels, I have displayed the Bar Chart label Text and Alert Image. If the “Alert On” radio button is checked I will display the Alert Image. If the “Alert Off” radio button is clicked then the Alert Image will not be displayed.

The use of an Alert Image

Let's consider a real project. For example we need to display a Pie Chart for a manufacturing factory with production results Good and Bad. For example if the production result for each quality value is above 300 then we need to display the Alert Green image and if the quality value is below 300 then we need to display the Red image with label bars.

This Alert Image will be easy to identify each quality result as good or bad. (Here for a sample I have used 2 quality check and displayed using Green and Red images but users can customize depending on requirements and add your own image and logic.)

Chart Color Theme

The user can select any one Color Theme for the Chart as Green Theme or Blue Theme.

Legend Display

The user can enable or disable the display of the Legend for the Chart using the check box. If the “Show Legend“ Checkbox is checked then the chart will be displayed with a label and alert image. If not checked then the legend will not be displayed in the chart.

Save Chart as Image

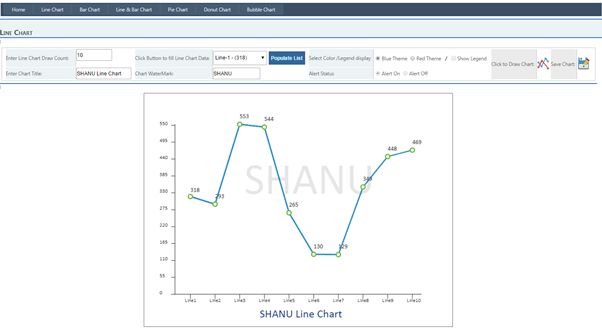

The user can save the chart as an image. Here we can see a Bar Chart with another theme with a Blue base but without displaying the Alert Image.

Code part

Step 1: Create new ASP.NET Web project

Click Start then All Programs then open Visual Studio 2013 or Visual Studio 2010 (depending on your installed version), select either one. Click "File" -> "New" -> "Project..." then select ASP.NET WEB Project then click Create.

Step 2:Add canvas tag to your webform

Add a new Webform and add a Canvas ELEMENT within the Section Tag.
  1. <SECTION style="border-style: solid; border-width: 2px; width: 800px;">
  2. <CANVAS HEIGHT="600px" WIDTH="800px" ID="canvas">
  3. Your browser is not supporting HTML5 Canvas .Upgrade Browser to view this program or check with Chrome or in Firefox.
  4. </CANVAS>
  5. </SECTION>
Step 3: Script to Draw Chart in step-by-step

Script Global variable

First add the global variable that needs to be used to draw a chart inside the script tag.

I have commented the line before for each variable about its use. Here the ChartWidth and chartHeigth variables will be used to store and draw the Chart width and height depending on the Canvas size.
  1. //public Canvas object to use in all the functions.
  2. //this variable will be used to check for the result of Alert Image display
  3. var alertCheckValue = 300;
  4.
  5. //Adding the Pic Chart Colors to array .Here i have fixed to 12 colors and 12 datas to add as Pic Chart.if you want you can add more from here.
  6. var pirChartColor = ["#6CBB3C", "#F87217", "#EAC117", "#EDDA74", "#CD7F32", "#CCFB5D", "#FDD017", "#9DC209", "#E67451", "#728C00", "#617C58", "#64E986"]; // green Color Combinations
  7. // var pirChartColor = ["#3090C7", "#BDEDFF", "#78C7C7", "#736AFF", "#7FFFD4", "#3EA99F", "#EBF4FA", "#F9B7FF", "#8BB381", "#BDEDFF", "#B048B5", "#4E387E"]; // Blue Color Combinations
  8. var lineColor = "#3090C7";
  9. var lineOuterCircleColor = "#6CBB3C";
  10. var lineInnerCircleColor = "#FFFFFF";
  11.
  12. //declare the Canvas object
  13. var canvas;
  14. var chartCTX;
  15.
  16. // declare the Border Space,Chart Start X and Y Position;
  17. var xSpace = 80;
  18. var ySpace = 80;
  19. //declare the Chart DrawWidth and Hegith
  20. var chartWidth, chartHeight;
  21.
  22. // declared the Chart Legend Width and Hegit
  23. var legendWidth, legendHeight;
  24.
  25. //declared the Chart data Minimum Value,maximum Value and Noofplots(Bars/Arc and Line points)
  26. var minDataVal, maxDataVal, noOfPlots;
  27.
  28. //here we declare the Image for the Chart legend alert status display.
  29. var greenImage = new Image();
  30. var redImage = new Image();
  31. //Alert Image Size widht and hegith
  32. var imagesize = 20;
  33. var maxValdivValue;
  34. //Here we declare the X,YAxis Font size and Color
  35. var fotnColor = "#000000";
  36. var axisfontSize = 10;
  37.
  38. var LogoImage = new Image();
  39. var LogoImgWidth = 120;
  40. var LogoImgHeight = 70;
  41. // This arrawy wil be used to draw the Legends
  42. rect = {};
  43. rectInner = {};
Note: I have used the Master pages so in the script before each control I will use the ContentPlaceHolderID.

For example my Green color theme radio button id is rdoColorGreen. But for jQuery I will be use like this cphBody_rdoColorGreen. For example if we use a master page then we add a ContentPlaceHolderID like this in the script:
  1. if ($('#cphBody_rdoColorGreen:checked').val() == "rdoColorGreen")
  2. {
  3. }
If we do not use the master page and we draw a chat in our webform without including the master page then we need to remove the contentploceholder id like this.
  1. if ($('# rdoColorGreen:checked').val() == "rdoColorGreen")
  2. {
  3. }“
2. Chart Color Theme

This method depends on the user color selection checked from the radio button. I will select the Color Array to fill in the color for each plots. This is a common function that can be used to draw any chart like Line, Bar, Pie, Donut and and so on.
  1. function ChangeChartColor()
  2. {
  3.    if ($('#cphBody_rdoColorGreen:checked').val() == "rdoColorGreen")
  4.    {
  5.          pirChartColor = ["#6CBB3C", "#F87217", "#EAC117", "#EDDA74", "#CD7F32", "#CCFB5D", "#FDD017", "#9DC209", "#E67451", "#728C00", "#617C58", "#64E986"]; // green Color Combinations
  6.          lineColor = "#3090C7"; // Blue Color for Line
  7.          lineOuterCircleColor = "#6CBB3C"; // Green Color for Outer Circle
  8.    }
  9.    else
  10.    {
  11.          pirChartColor = ["#3090C7", "#BDEDFF", "#78C7C7", "#736AFF", "#7FFFD4", "#3EA99F", "#EBF4FA", "#F9B7FF", "#8BB381", "#BDEDFF", "#B048B5", "#4E387E"]; // Blue Color Combinations
  12.          lineColor = "#F87217";  // Orange Color for the Line
  13.          lineOuterCircleColor = "#F70D1A "; // Red Color for the outer circle
  14.    }
  15. }
